SPECIFICATIONS

Brand Name: NONE

Certification: None

Choice: yes

Electronic: No

Hardware Version: V2.1 ELM327

High-concerned chemical: None

Is Batteries Included: No

Origin: Mainland China

Software Update: Yes

Use: Not Telecommunication

Features:

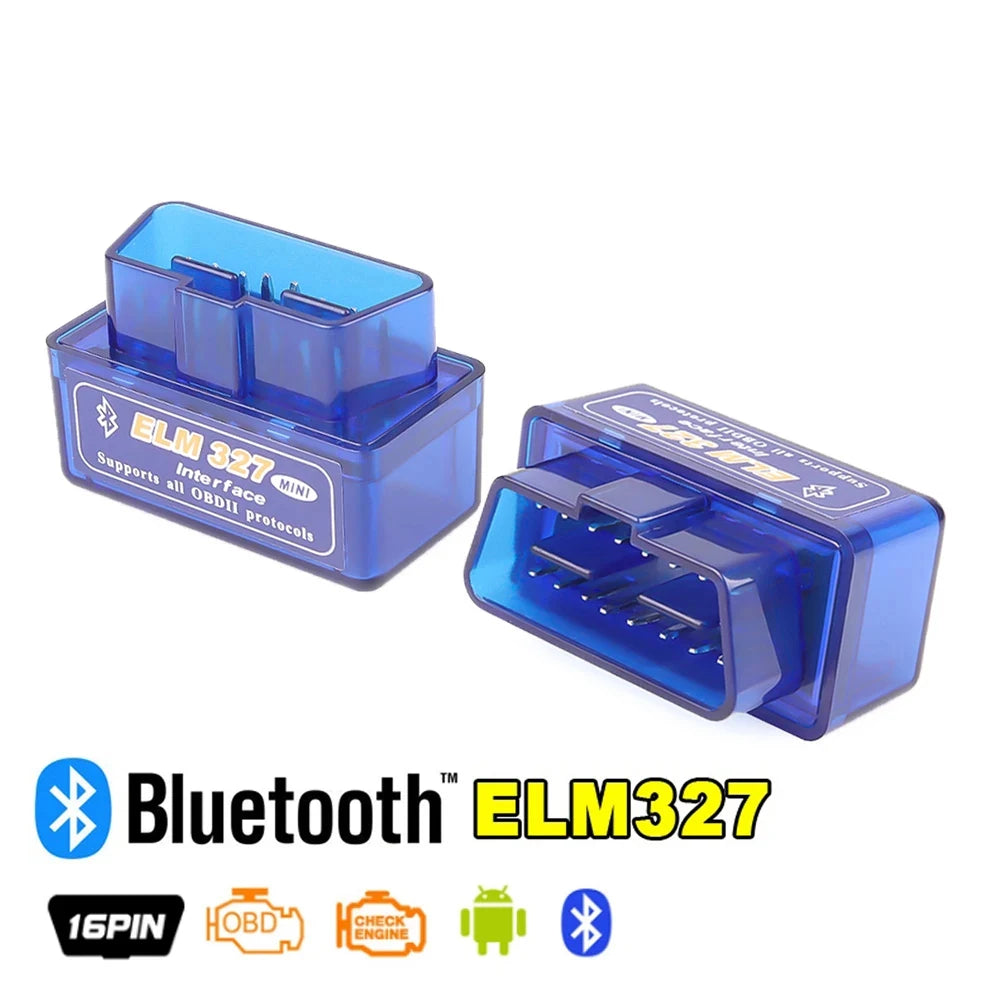

The newly developed high-quality wireless scan tool, support all OBD2 protocols.
Work with all OBD2 compliant vehicles.
Enable to read diagnostic trouble codes.

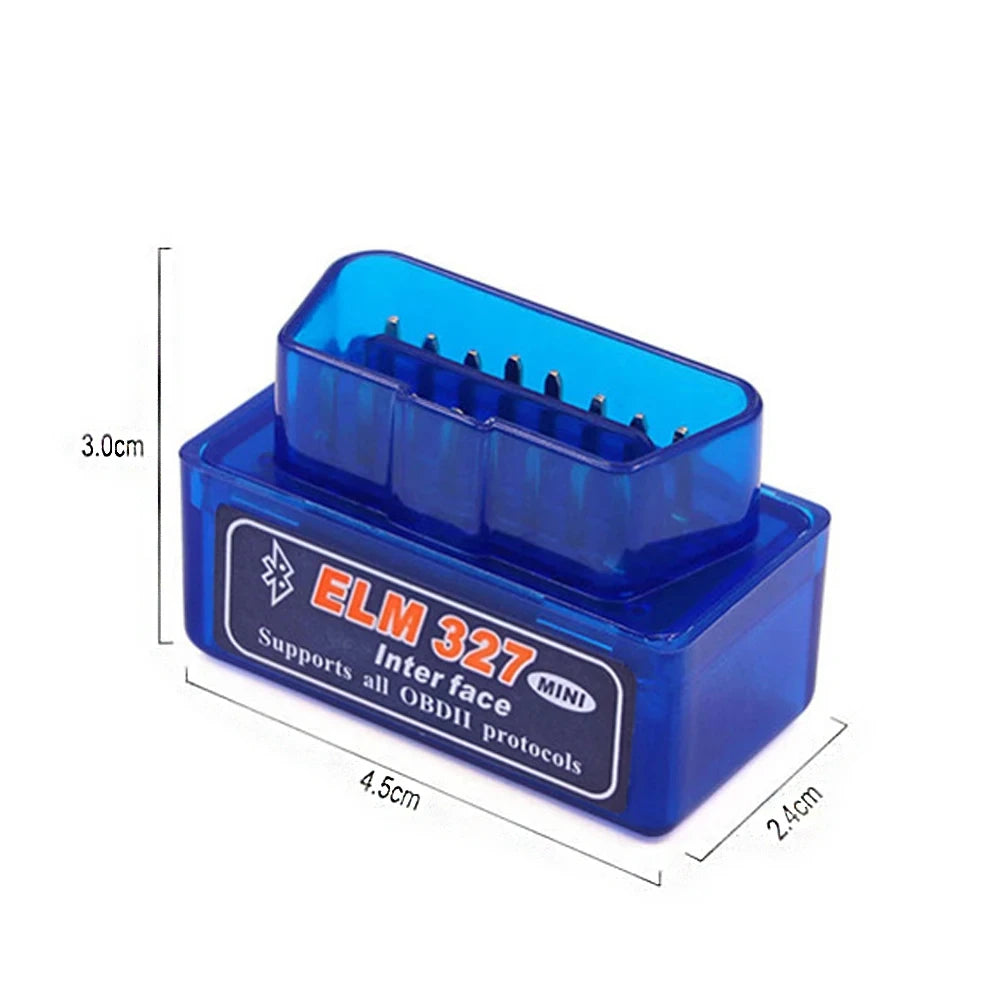

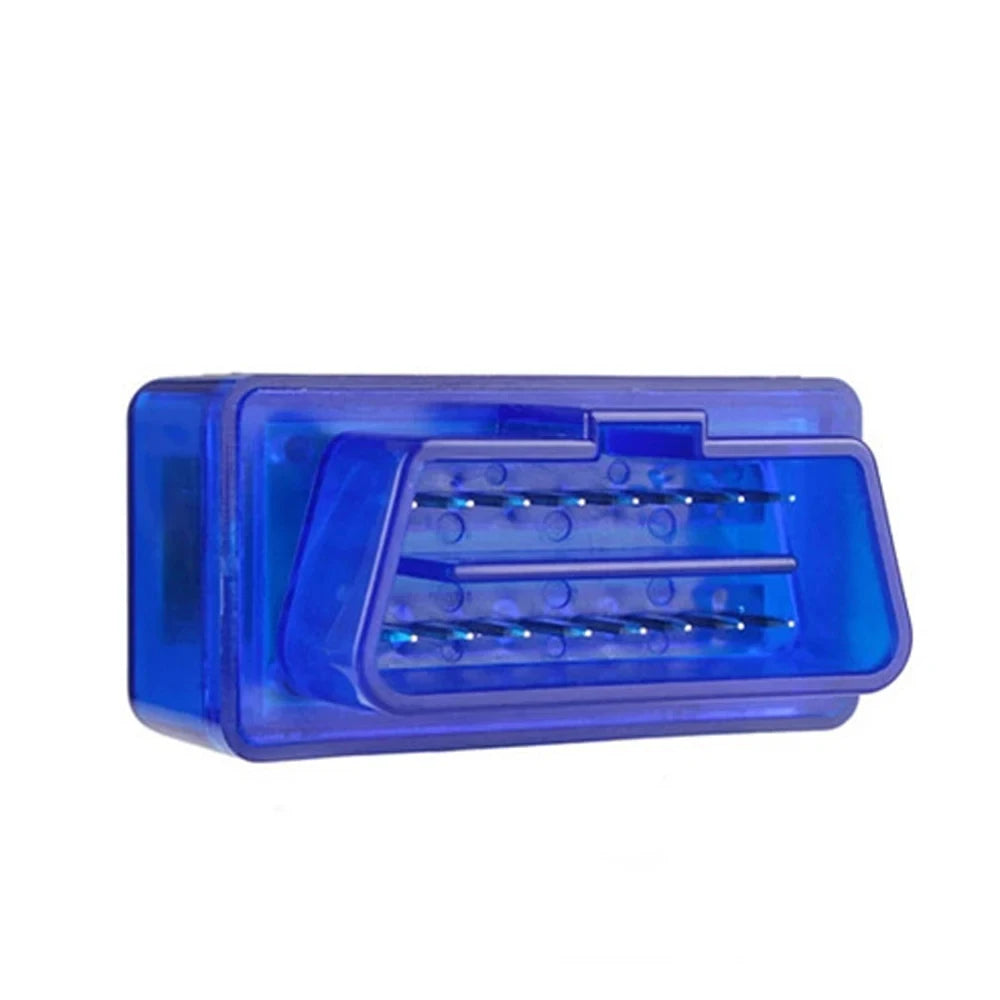

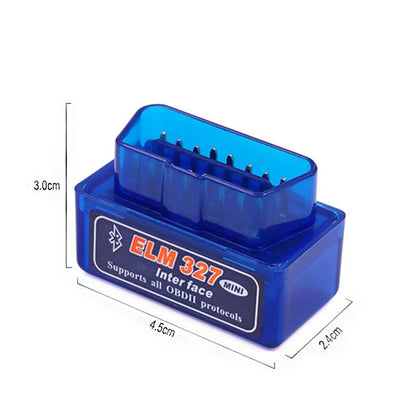

Small interface with a 16 pin socket.

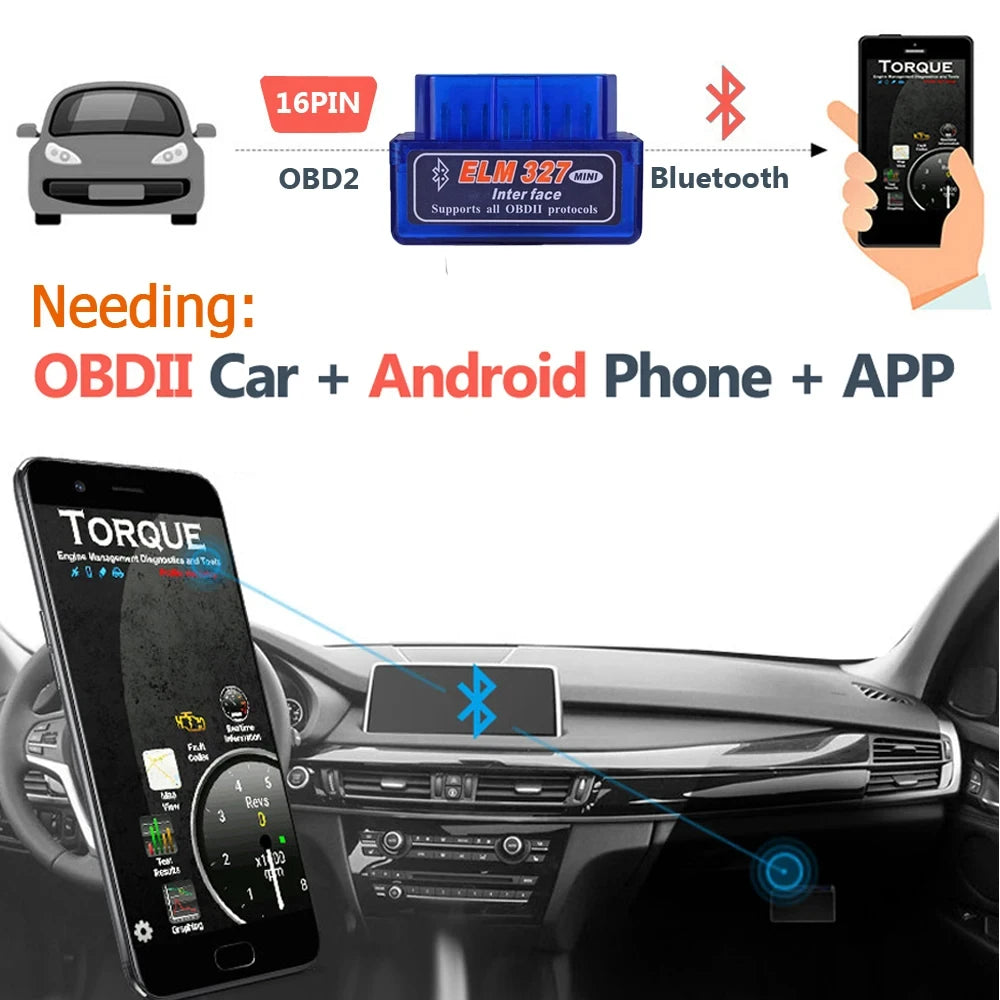

Support different kinds of devices to use this scan tool:
Android system phones(hardware V4.1-4.3), Symbian system phones,
Windows XP and WIN7 32bite computers.
With a switch to turn on/ off these indicator lights.

Functions:
Read diagnostic trouble codes, both generic and manufacturer specific, and display their meaning (over 3000 generic code definitions
in the database).
Display current sensor data, including:
1.Engine RPM
2.Calculated Load Value
3.Coolant Temperature
4.Fuel System Status
5.Vehicle Speed
6.Short Term Fuel Trim
7.Long Term Fuel Trim
8.Intake Manifold Pressure
9.Timing Advance
10.Intake Air Temperature
11.Air Flow Rate
12.Absolute Throttle Position
13.Oxygen sensor voltages/associated short term fuel trims
14.Fuel System status
15.Fuel Pressure

Packing List:
1 * ELM327 OBD2 diagnostic interface V2.1

Protocols:

FOR V2.1:
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
