SPECIFICATIONS
BMS: 30A
Battery Type: Folding E-Bike Electric Bicycle Battery
Brand Name: ACEBEI-POWER
Capacity: 10 - 20Ah,13Ah 16Ah 17.5Ah
Certificate: CE UL RoHS UN38.3 MSDS
Certification: CE,RoHS
Cycle Life: 800~1000 cycles
Fit for Bikes 1: Engwe EP-2 Pro Engine Pro Engine X
Fit for Bikes 2: MATE X
Fit for Bikes 3: Polarna M5 M6
Fit for Bikes 4: SAMEBIKE XWLX09-II/ RS-A02 Pro
Fit for Motors: 0-1000w
High-concerned chemical: none
Origin: Mainland China
Type: Lithium battery
Voltage: 48v

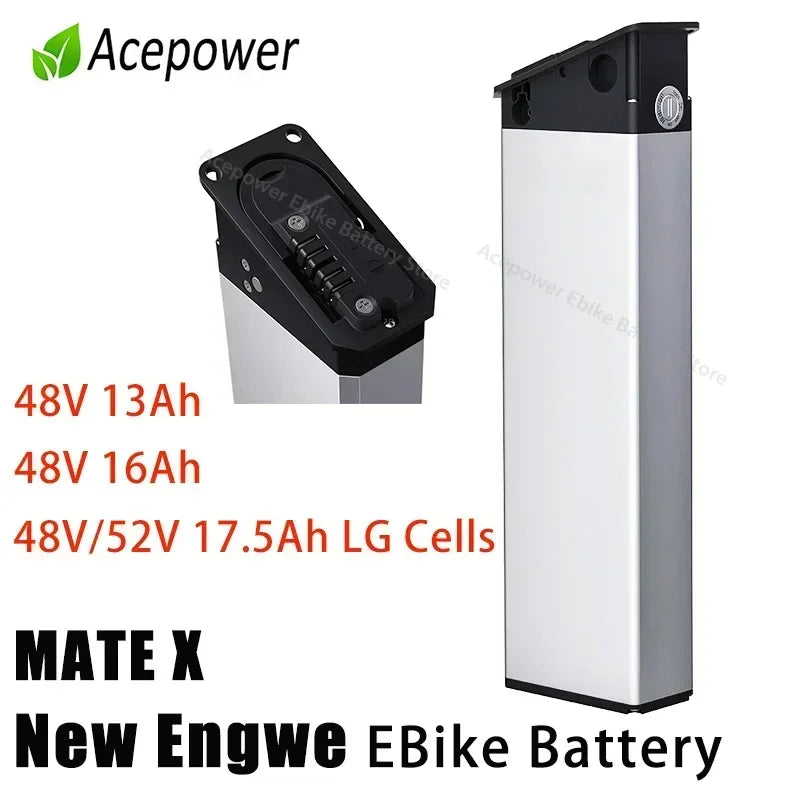

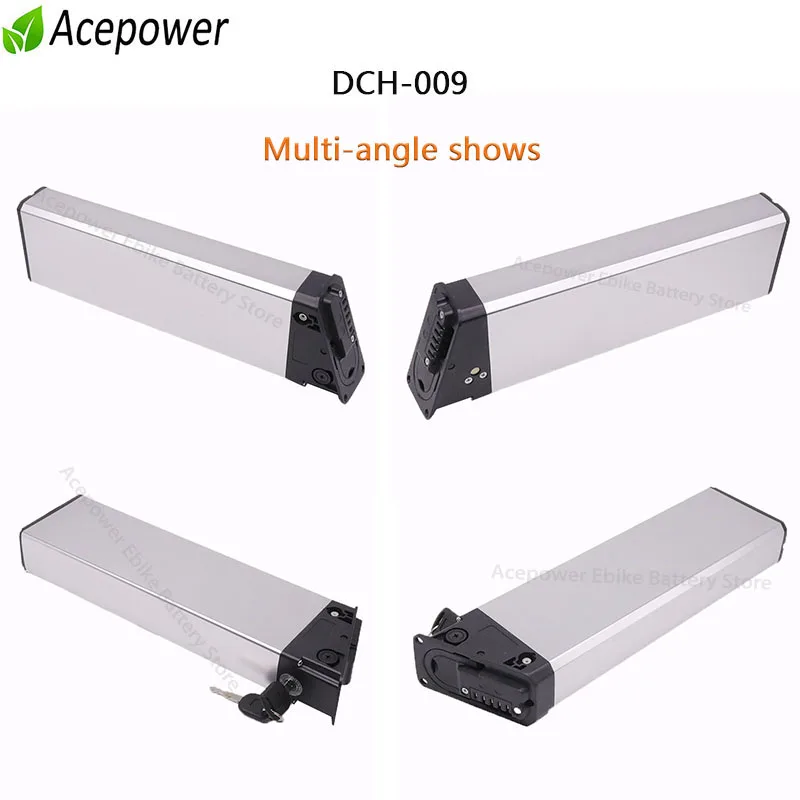

48V17.5Ah 48V16Ah 48V13Ah Replacement Battery for 2022 New Engwe EP-2 Pro /Engine Pro Upgraded Version For MATE X Bike Battery DCH-009
Fit for: Mate X bike, Engwe Engine Pro (16Ah Version) and Ep-2 Pro（13Ah Version),
Engwe Engine X 13Ah Version and 16Ah Version CMACEWHEEL RX20, Bezior XF200/ X Plus etc...
Note for Engwe Engine Pro/Engwe ep-2/ep-2 pro/ BEZIOR XF200 ebike:

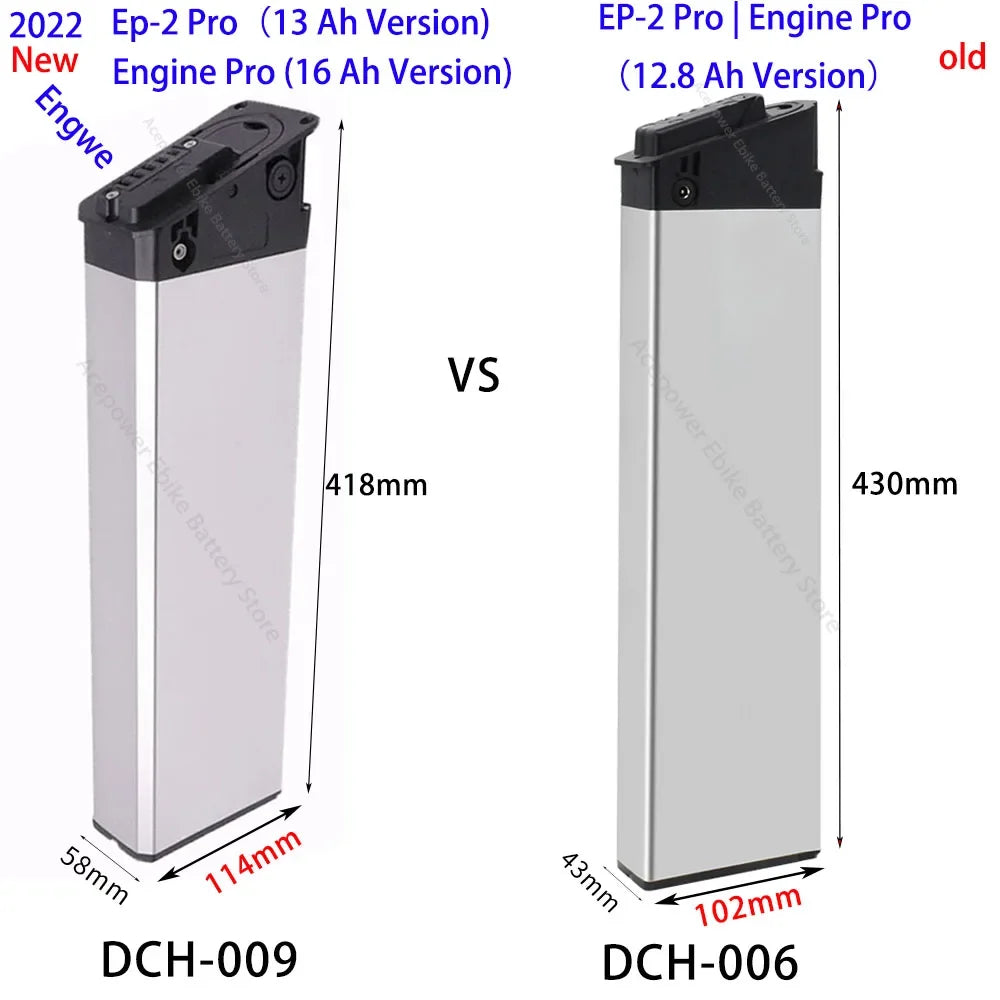

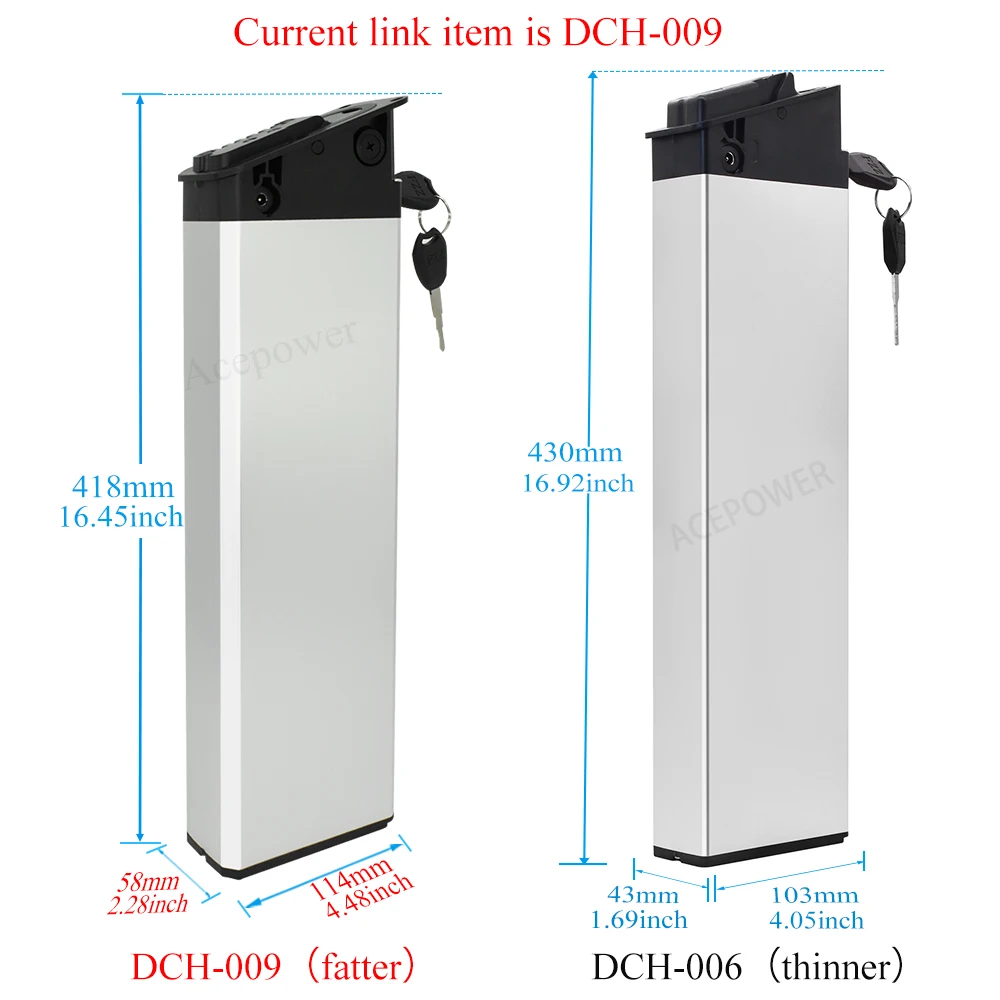

Old version ebike used with DCH-006(43x103x430mm) thinner battery;
New version ebike used with DCH-009(58x114x418mm) fatter battery.
Current link item is 009. If you can't sure what version of your ebike and can't sure which battery to choose, Send us your old battery photos, we'll check for you.
!!!Attention:
Current link is item DCH-009，not DCH-006, they are similar models, but not the same model, they have different sizes, please be sure to pay attention to the size when ordering to avoid wrong orders！

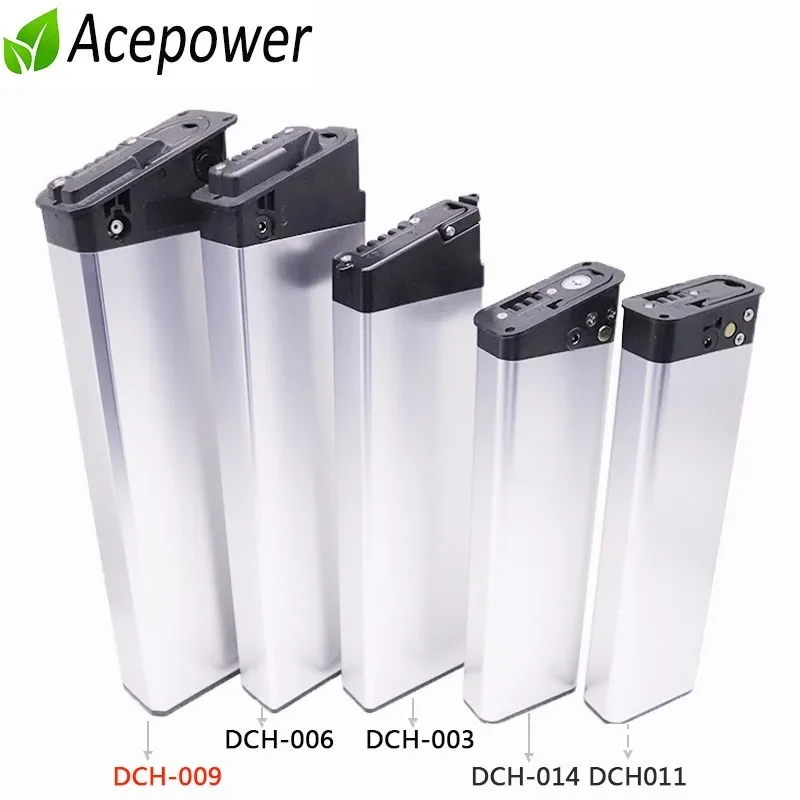

If need others model DCH-006, DCH-003, DCH-014, DCH011, or other similar style batteries, please contact us.

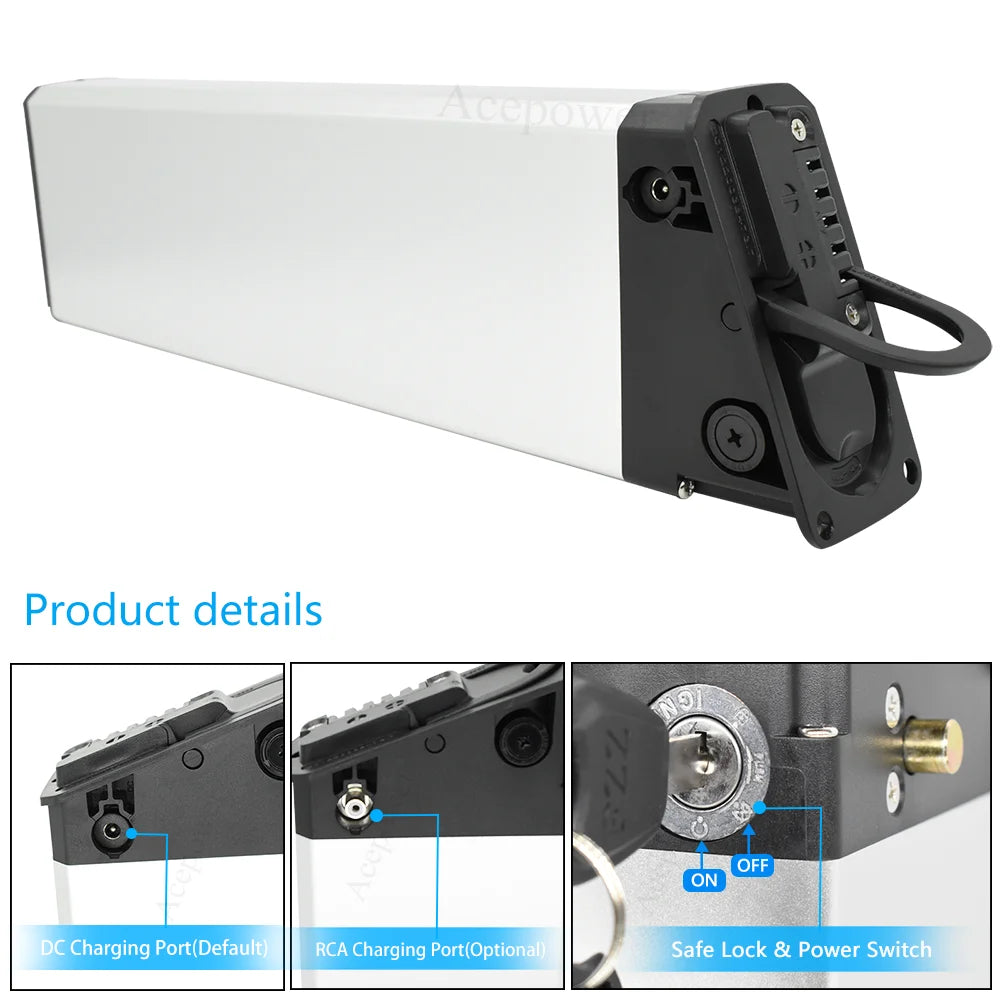

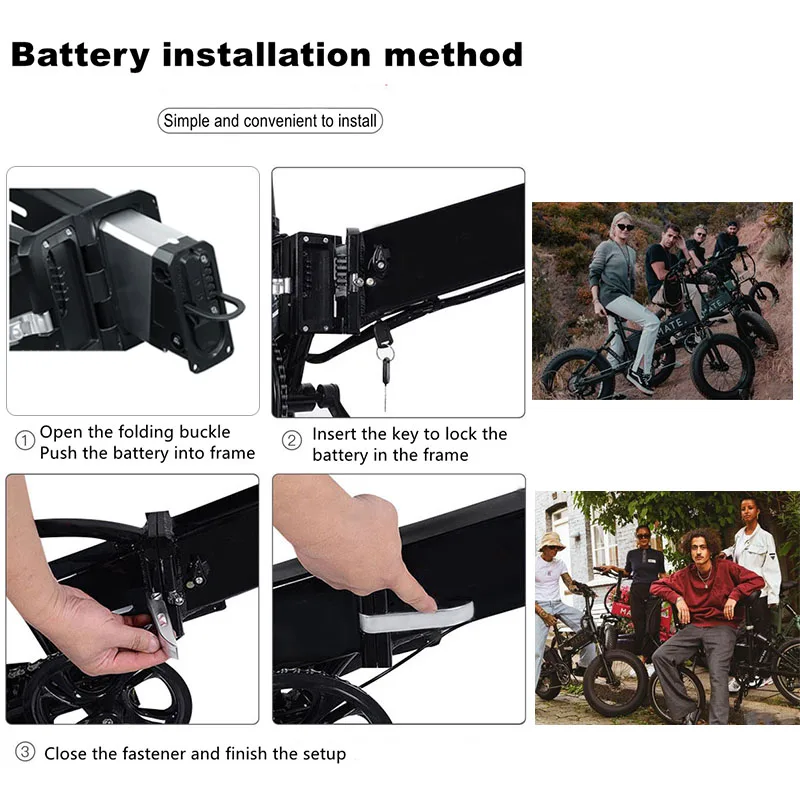

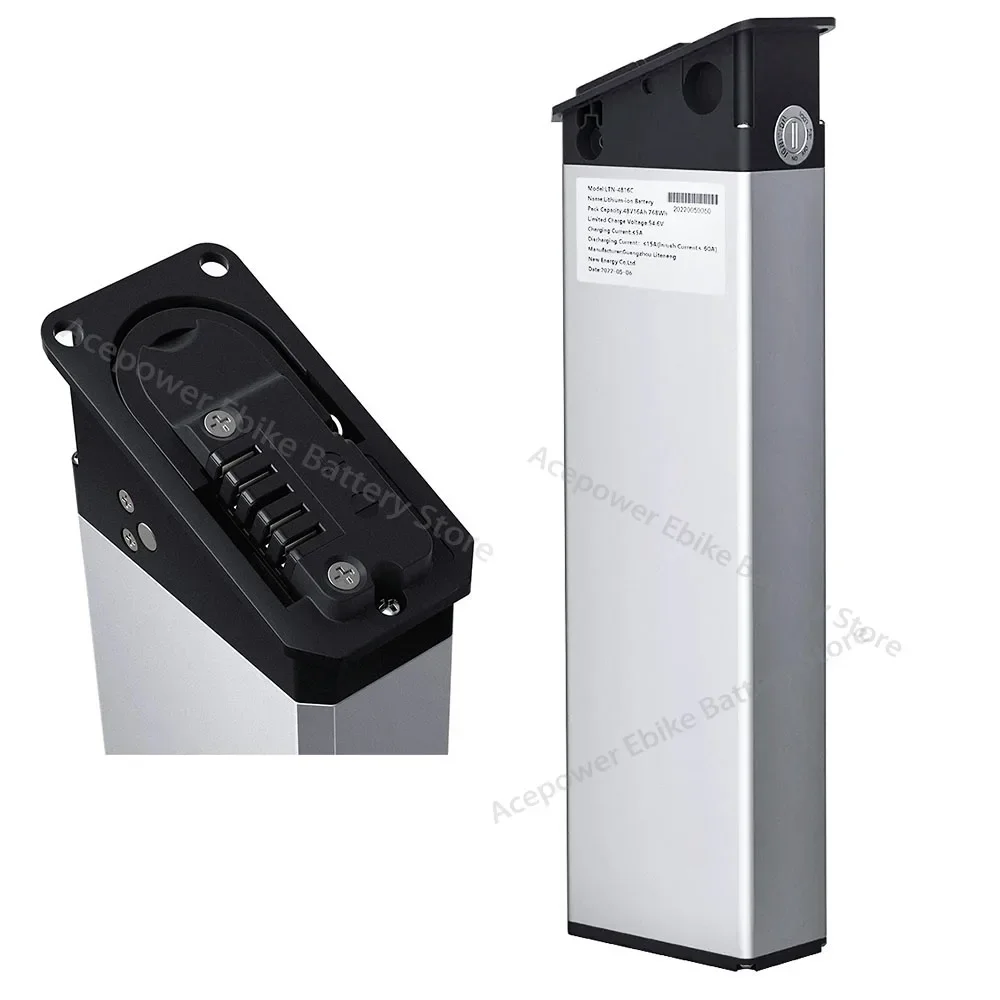

Important Notice for DCH-009's lock design:
Function 1. Lock the battery inside the bike frame. (with function 1 )
Function 2. The lock is also the battery's power (on/off) switch. (with function 2 also)
Defaultly, we will make battery with both function 1 and function 2,
so: before charging and riding, please turn the battery key to the end to turn on the battery's switch.
If you don't need function 2, please leave order note when place order.
Battery Specification:
|
Battery Parameter |
48V 10.4Ah |
48V 13Ah |
48V 15Ah |
48V 16Ah |
48V 17Ah |
48V 17.5Ah |
52V 17.5Ah |
Cells |
Brand |
Brand |
Brand |
Brand |
Panasoni/c |
L G/Sam-sung/Panasoni/c |
L G/Sam-sung/Panasoni/c3500mAh |
Composed Type |
13S 4P |
13S 5P |
14S 5P |
||||
Battery Weight(appr.) |
3.3kg |
4kg |
4.25kg |
||||
Charging |
54.6V |
54.6V |
58.8V |
||||
Discharge |
39V |
39V |
42V |
||||
Fit for Motors |
48V 0-750W |
48V 0-1000W |
48V/52V |
||||
Charger |
2A |
3A faster charger |
3A faster charger |
||||
Charging Time |
5-6h |
4-5h |
5-6h |
5-6h |
5.5-6.5h |
6-7h |
6-7h |
General Parameters:
BMS |
30A Smart BMS |
Battery Size(appr.) |
58*114*418mm |
Discharge Temperature |
-20~65°C |
Charging Temperature |
0~45°C |
Cycle Life |
80% Capacity after 800 cycles |
Warranty |
1 Year |

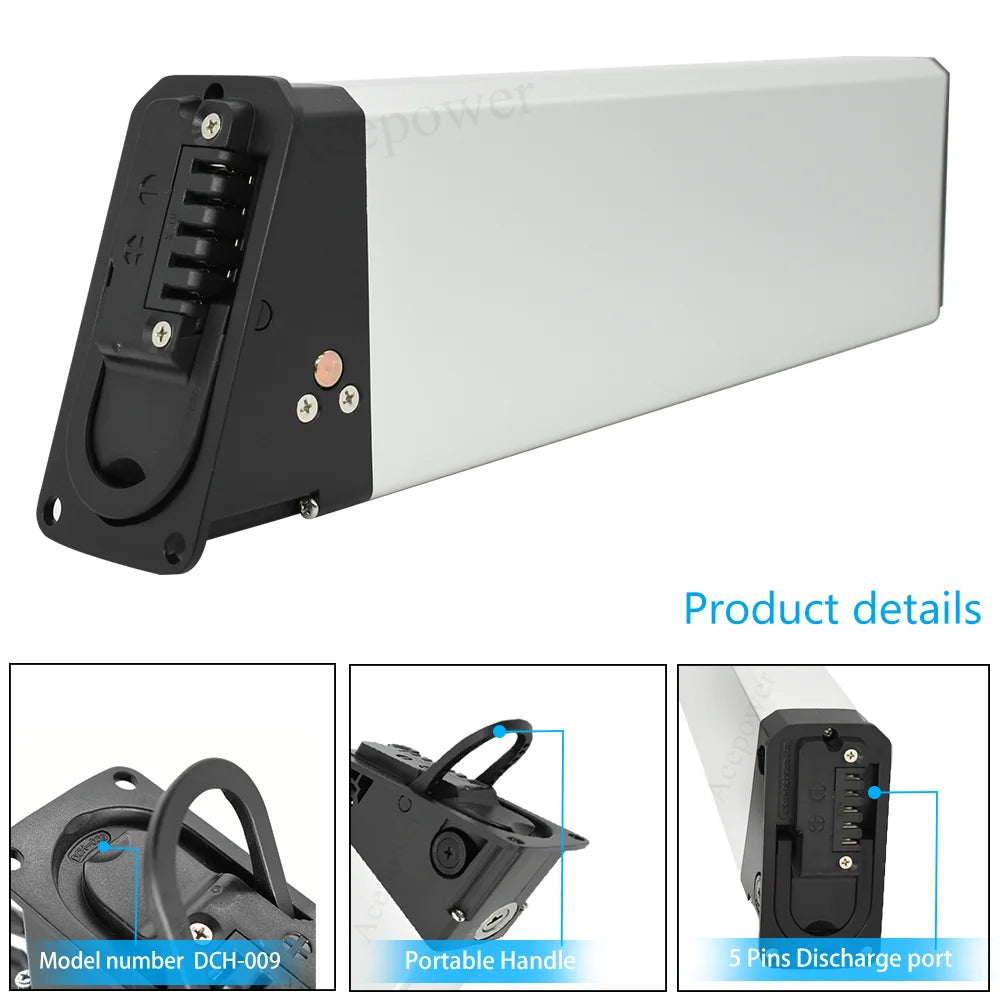

Discharge Connectors
Discharge Connector:
Below 7 kinds optional, you can leave "order note" to tell which kind do you need.
Without request, we will offer one kind of them by default, offer whole pairs to you.
"whole pairs, include one side for battery, another spare side for your controller", so that whatever what connectors on your controller side, you can use our whole pairs connectors to connect directly.

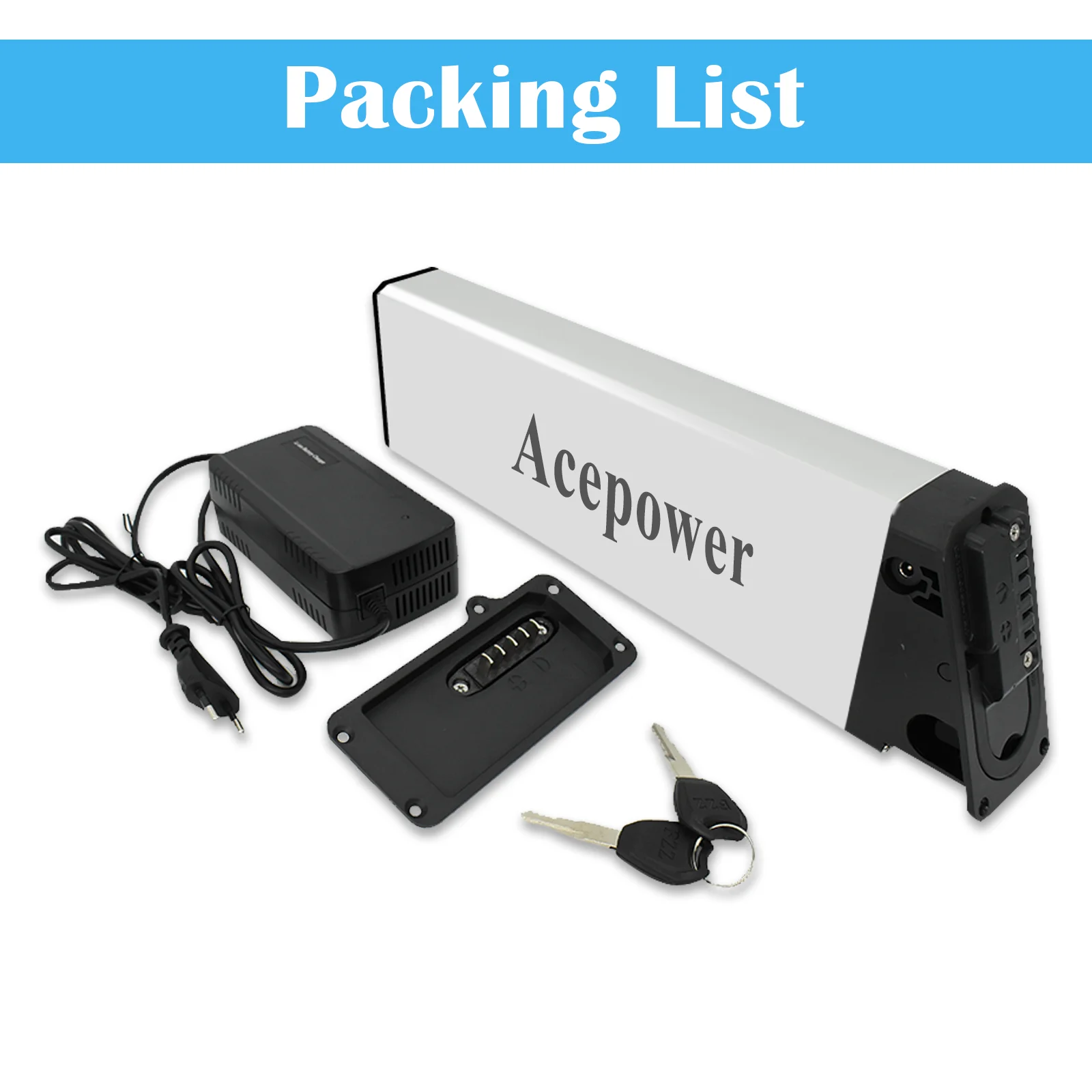

Packing List:
Battery * 1
Charger * 1
Discharge plate * 1
Keys * 2
