SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: no

Brand Name: MACHINIST

Chipset: AMD B450

Chipset Manufacturer: AMD

Form Factor: Micro-ATX

High-concerned chemical: none

Material: others

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of SATA Ports: 4

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s)

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: AMD Others

RAID Supported: no

Socket Type: AM4

Special Features: NONE

Storage Interface Type: SATA

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Video Production

With CPU: No

* Boot shortcut key: F11;

* Supports Wake-on-LAN;

* Supports automatic restart after power failure and scheduled power-on;

* Supports TPM 2.0.

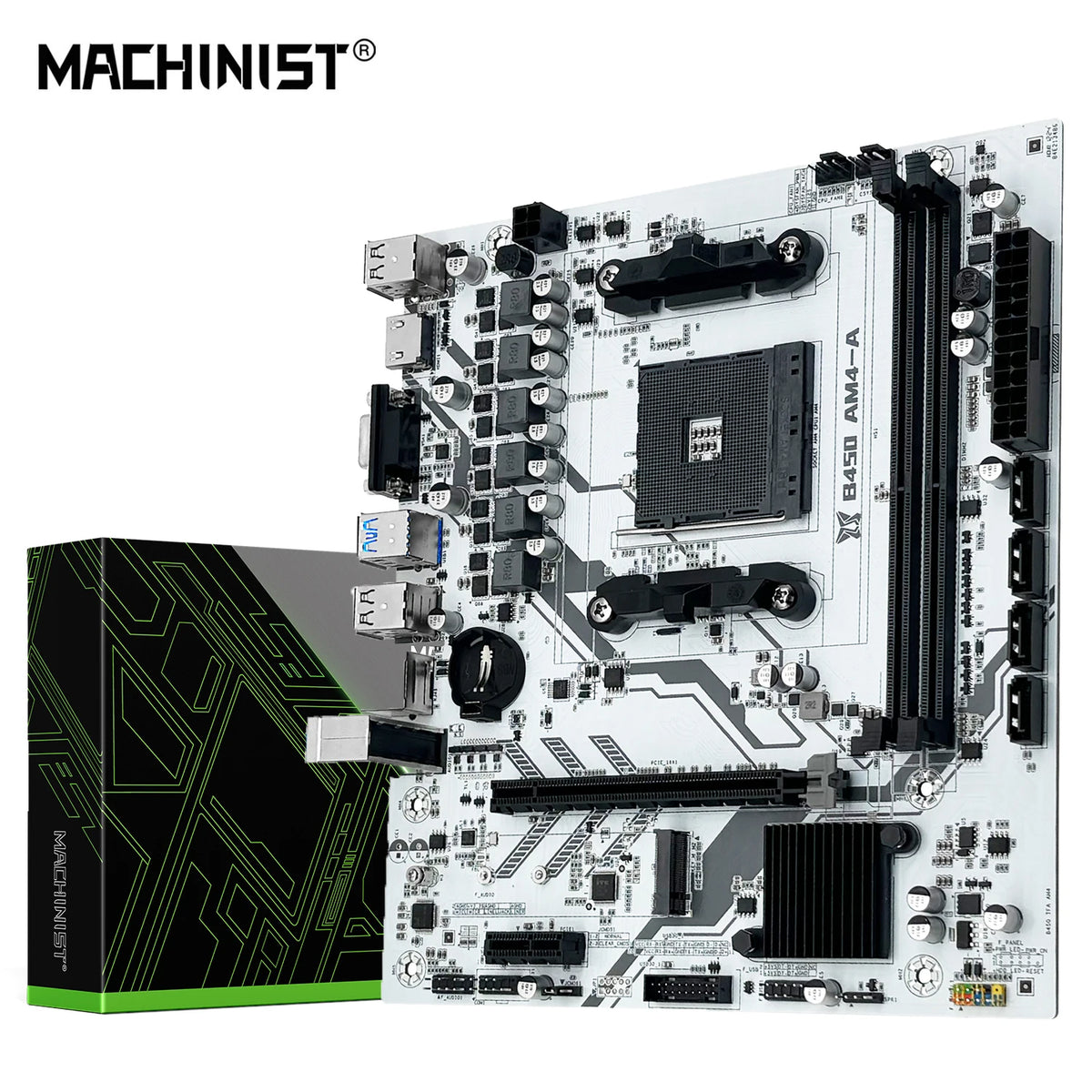

>>Motherboard Information:

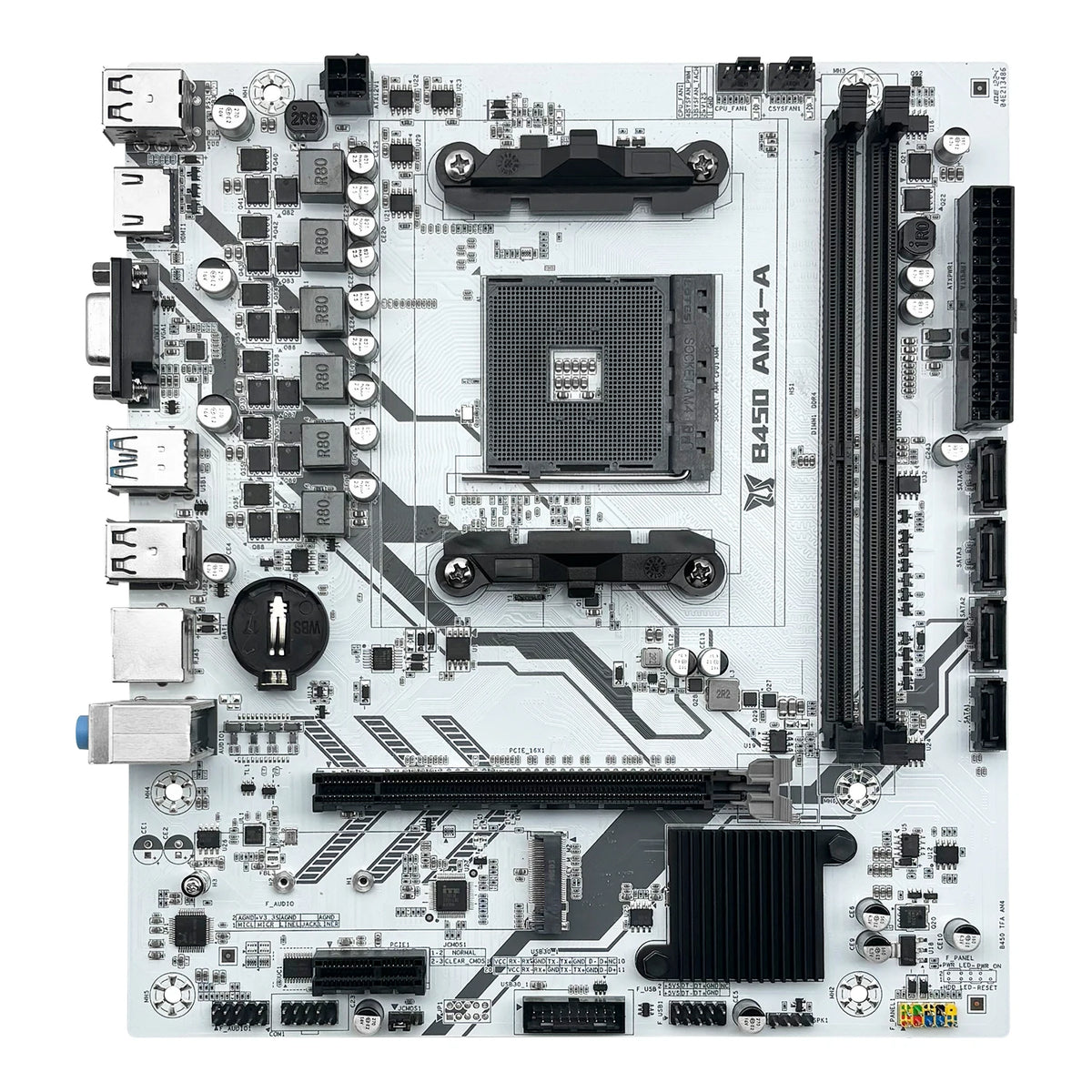

Brand: MACHINIST.

Motherboard Model: B450.

Processor: Supports AMD AM4 series processors (supports Ryzen 1-5 generations).

Chipset: X470/B450 chipset.

>>Memory:

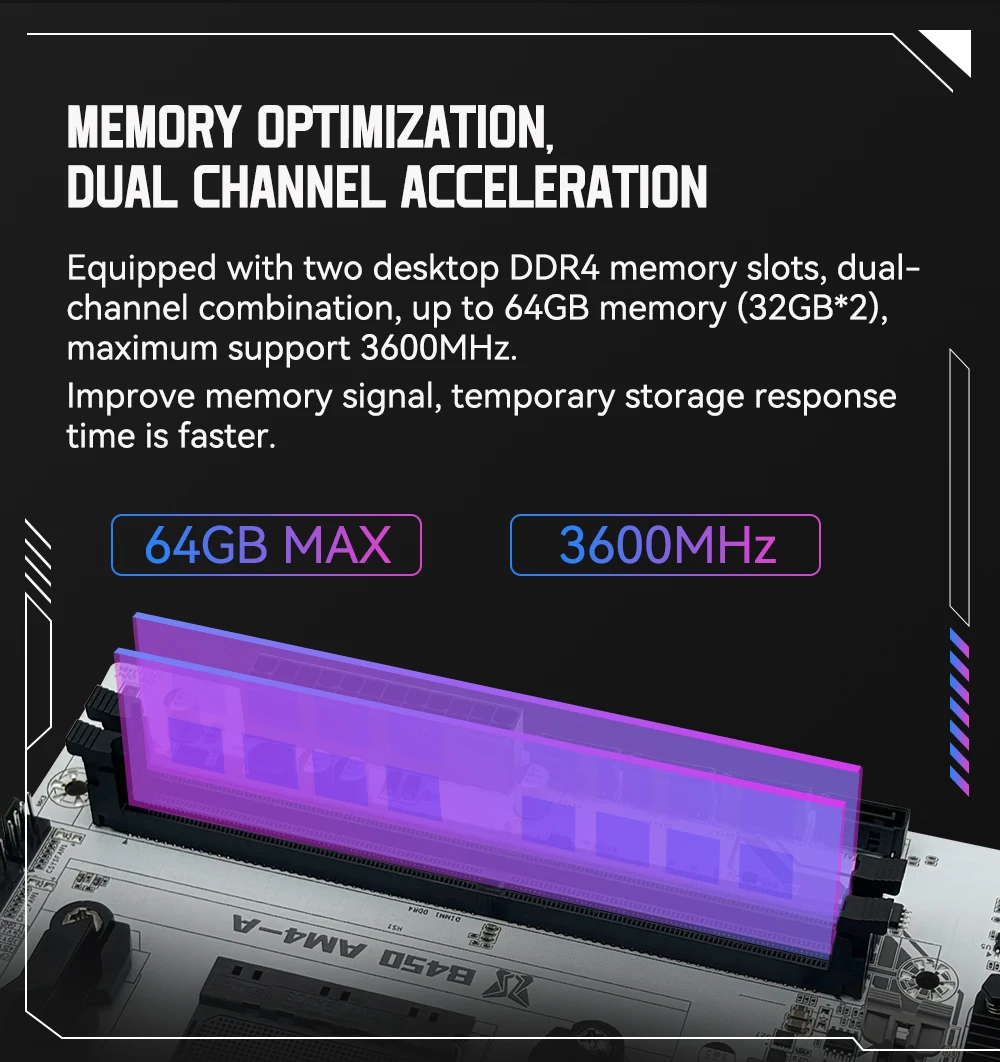

Technology: Dual-channel DDR4. Supports 2133/2666/3000/3200/3600MHz.

Maximum capacity: 64GB (32GB x 2).

Memory Slots: 2*288PIN DDR4.

Supported Memory Type: Supports DDR4 desktop memory only.

(Note: Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may not be compatible.)

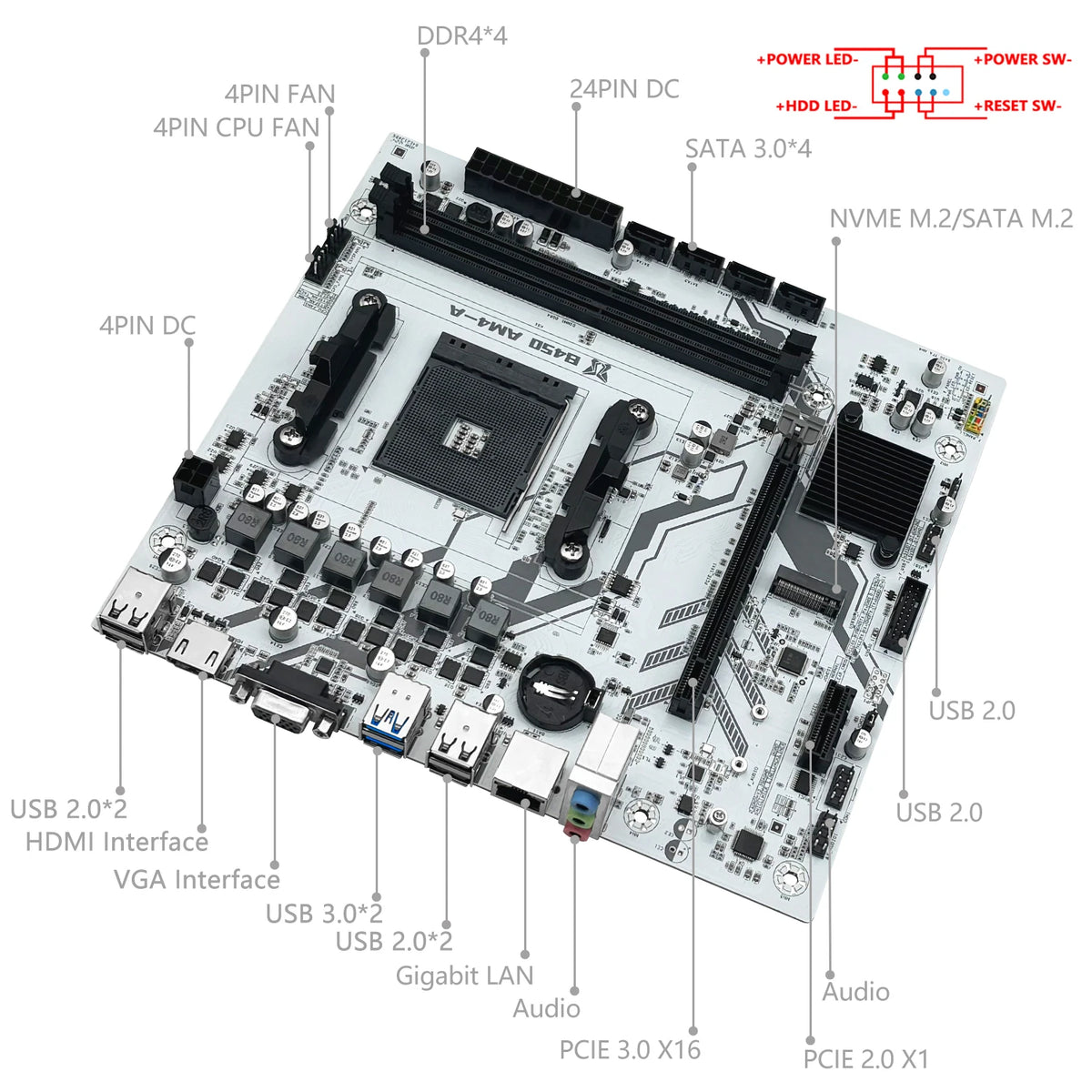

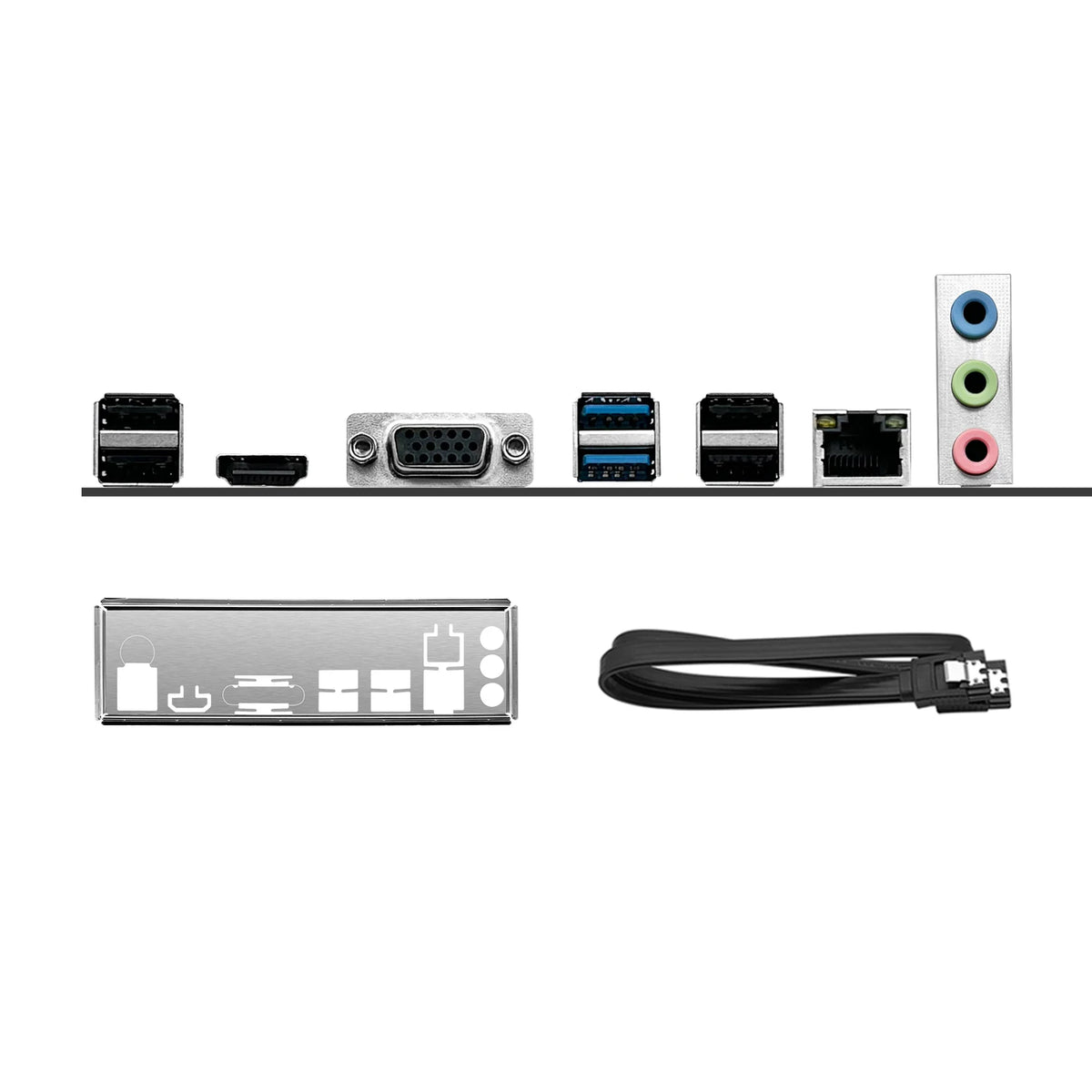

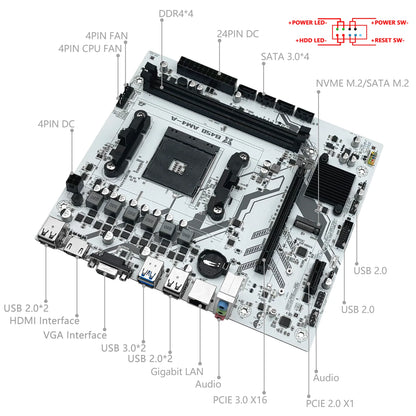

>> Rear I/O:

Display Interfaces: Supports VGA & HDMI displays.

USB Ports: 2 USB 2.0 ports; 2 USB 3.0 ports.

Ethernet: Gigabit Ethernet port.

Audio: 1 (microphone input, line-out, line-in).

>> Other:

SATA Ports: 4 (SATA 3.0).

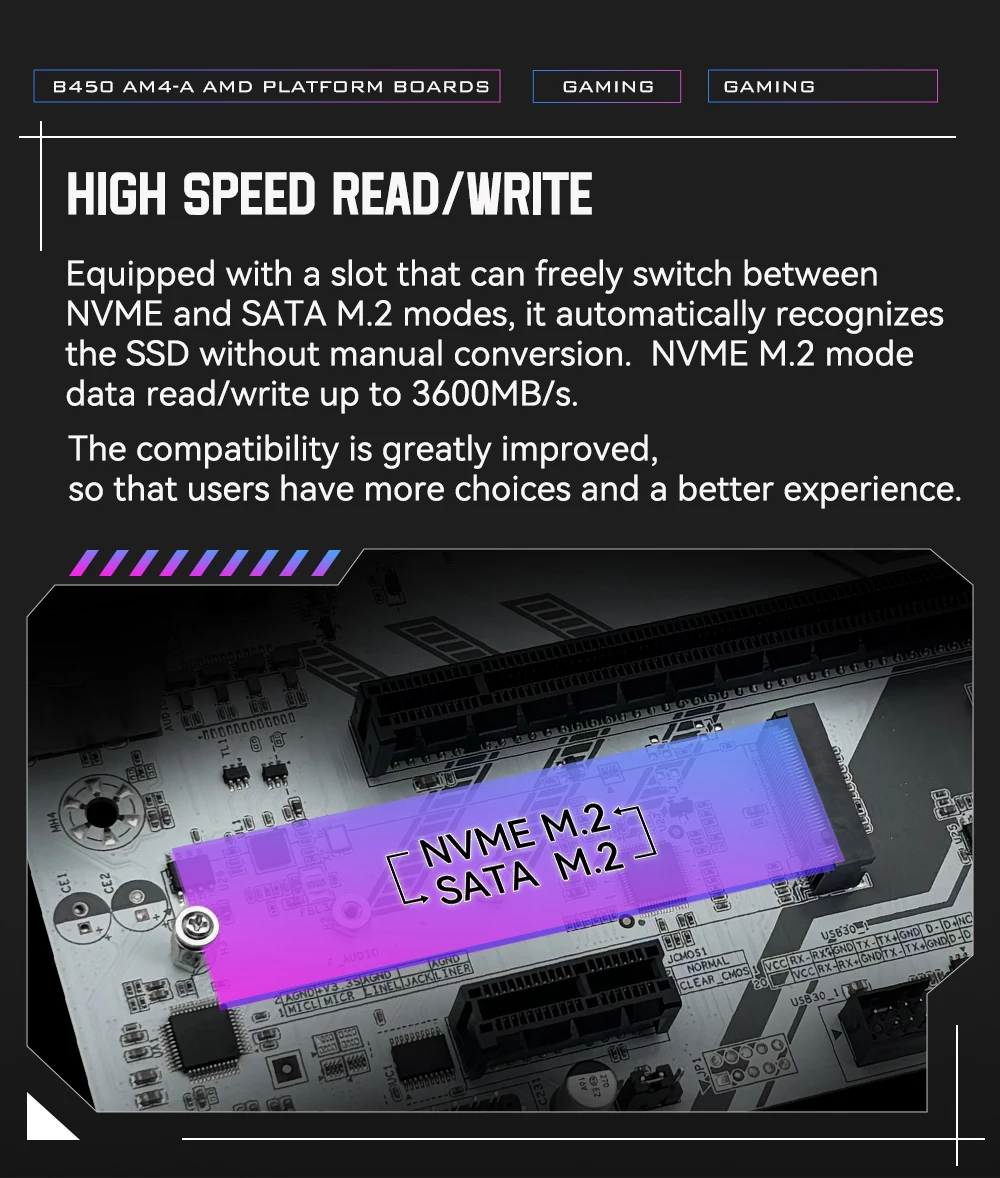

M.2: 1 (NVMe/SATA automatic switching).

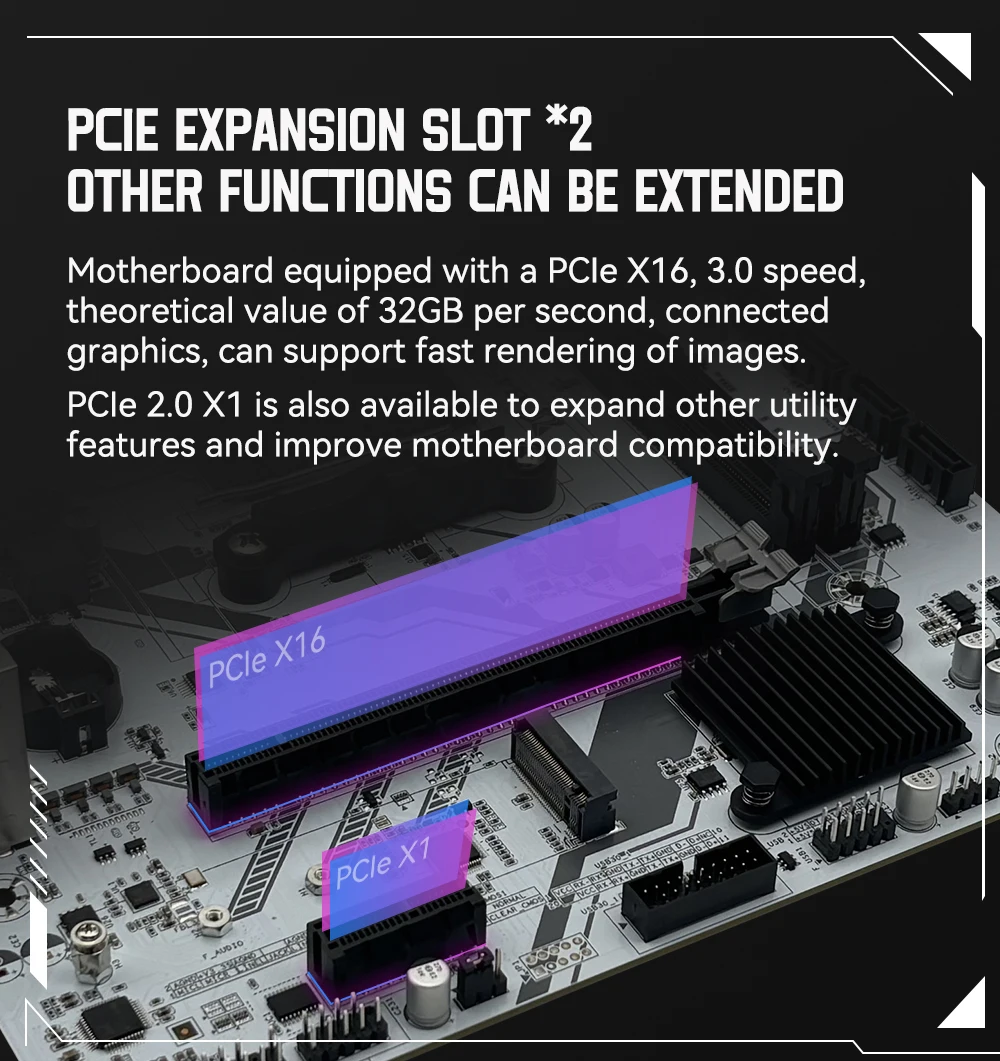

PCIe: 1 x16 3.0 PCIe and 1 x1 PCIe.

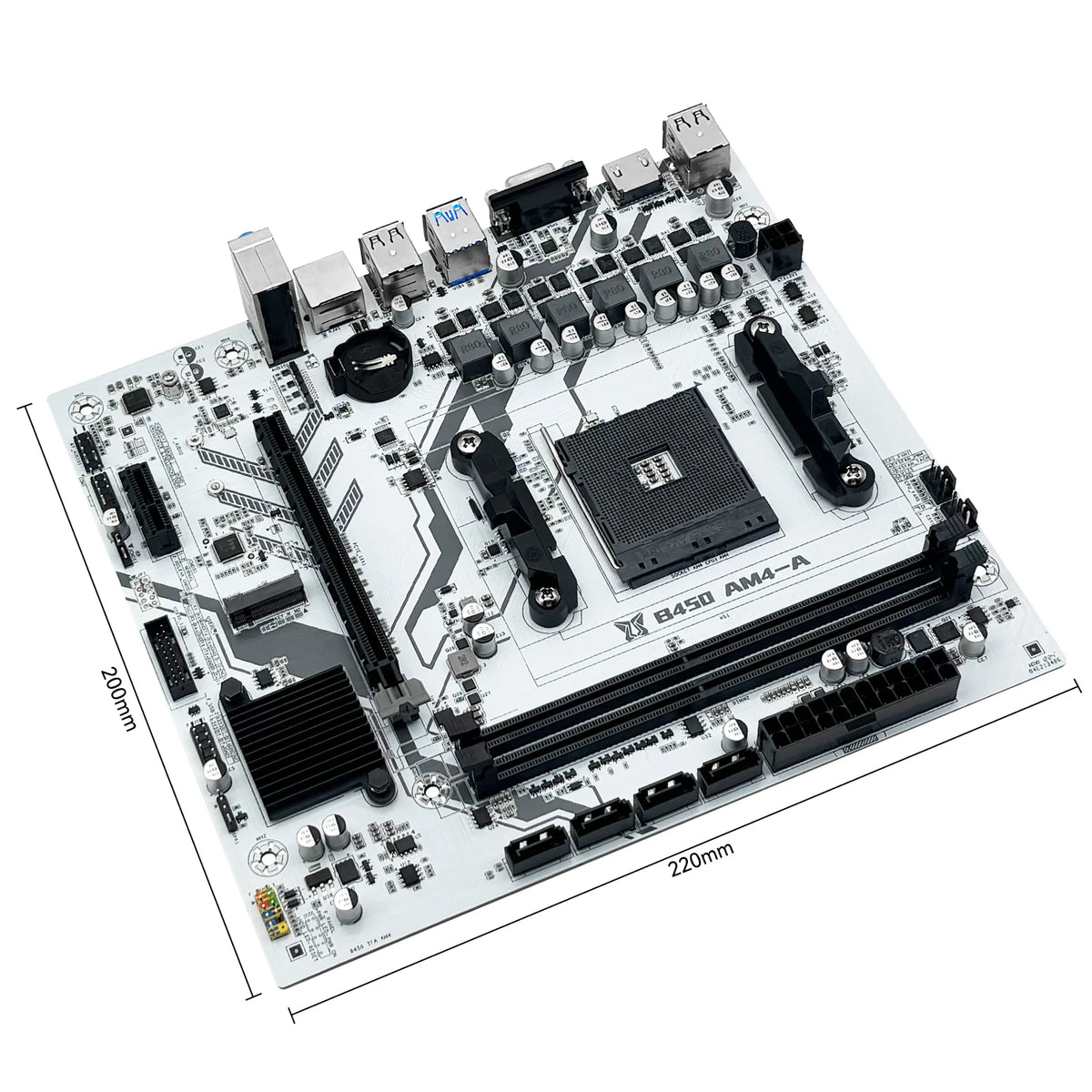

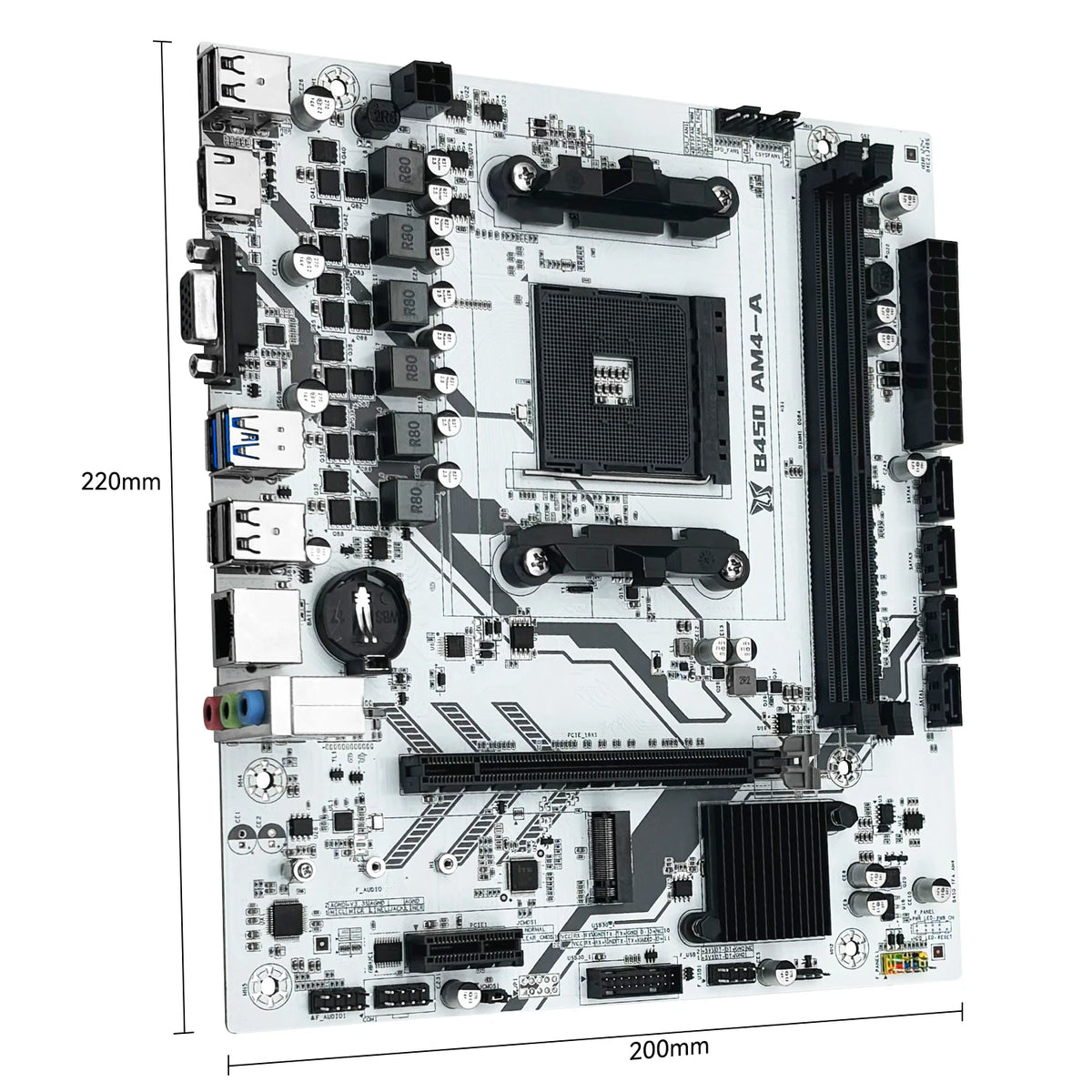

Dimensions: 220mm * 200mm.

Motherboard Weight (including packaging): Approximately 0.85 kg.

>> Package Includes:

#Main Product: MACHINIST B450 Motherboard * 1;

##Bonus Accessories: I/O shield, SATA cable.

### All products are manually tested before packaging. Please understand if any free gifts are missing!>> Note:

(1) The color of the bottom plate may vary from batch to batch, but this will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Please allow an error of 1-3mm due to manual measurement.

(3) Due to different displays and different lighting, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least a 500W brand power supply)

(5) The battery shown in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of the battery.
