Wanptek Adjustable DC Power Supply 30V 5A 10A 60V 120V 3A Laboratory Bench Power Source Switching Stabilized LCD Power Supply Regulator

Wanptek Adjustable DC Power Supply 30V 5A 10A 60V 120V 3A Laboratory Bench Power Source Switching Stabilized LCD Power Supply Regulator

Free Shipping on orders over $50 - Limited Time
$97.85 USD
$140.85 USD $97.85 USD
Save $43.00
Shipping calculated at checkout.
🎒 Back to School Offer
More you buy, more you save — automatic discount applied at checkout
Buy 1 item
Perfect for getting ready for the new school year
No discount
Buy 2+ items
Stock up for school — savings unlocked
Save 10%
Buy 3+ items
Best value for back to school shopping
Best Value
Save 15%
In stock — ready to ship within 24 hours.
🔥 30% Off ends in
0
0
:
0
0
:
0
0

Secure checkout

American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa
🛒
Ordered
Once the order is placed, it takes 24 hours to prepare the shipment.
🚚
Shipped
Orders will start to be shipped within 1 business day.
✓
Delivered
Enjoy your order! Estimated delivery within 7 days after dispatch.
↺
Free Returns
Easy returns for extra peace of mind.

🚚 Shipping Policy

Free U.S. shipping on orders over $50.
We offer quick and dependable shipping. Orders arrive within 7–12 business days, complete with tracking updates.

↩️ Money back Guarantee

Shop with confidence — enjoy easy, hassle-free returns within 30 days. Your satisfaction is our priority.

SPECIFICATIONS

Brand Name: wanptek

Certification: NONE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: dps3010u

Origin: Mainland China

Output Current: 0-10A

Output Frequency: 50hz 60hz

Output Type: SINGLE

Rated Capacity: ＜40VA

Type: Power Supply

is_customized: no

There are included 3 packages:

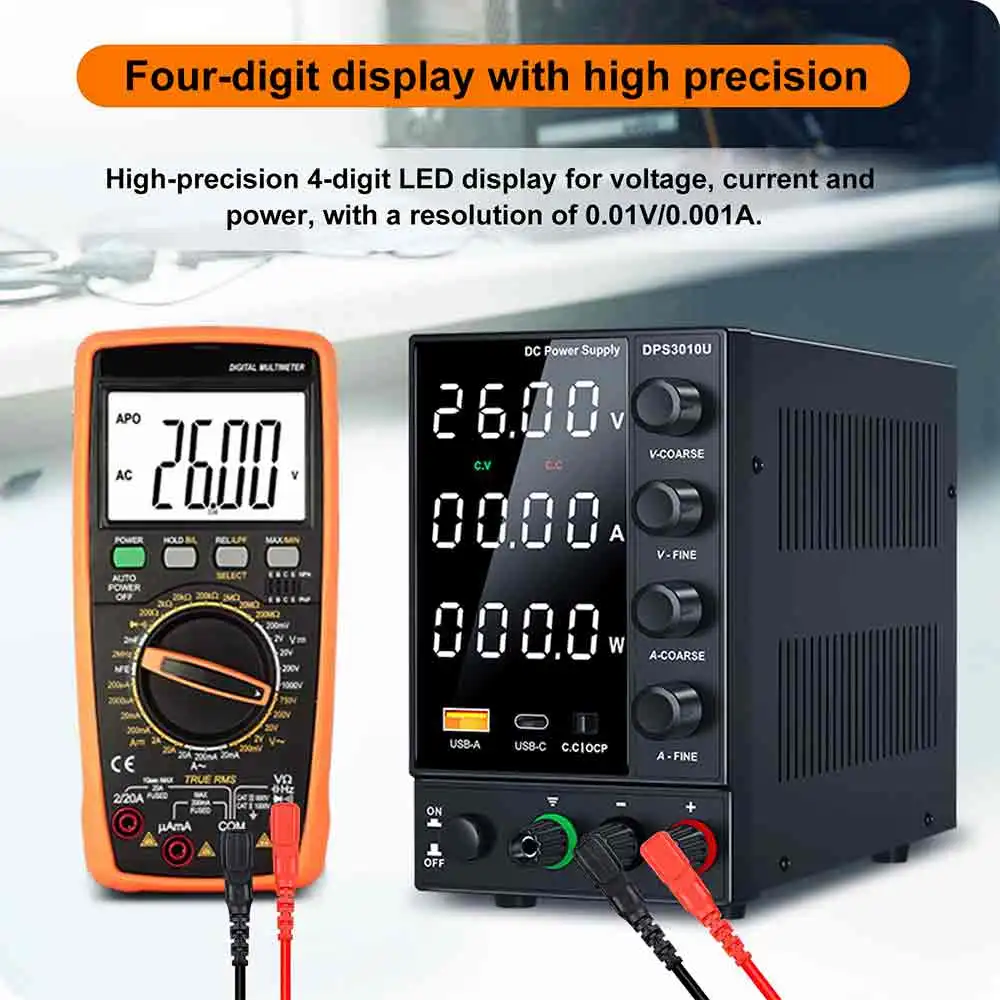

Four-digit display 0.01 V/0.001 A

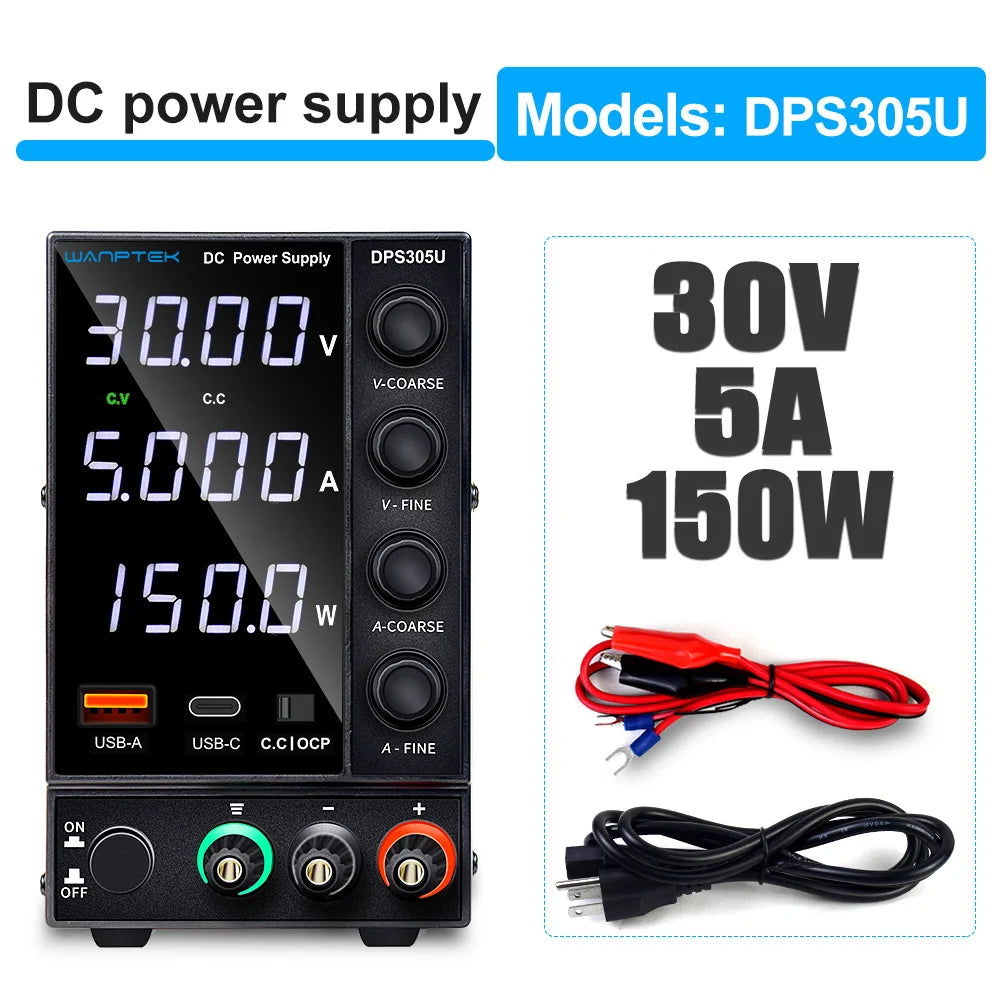

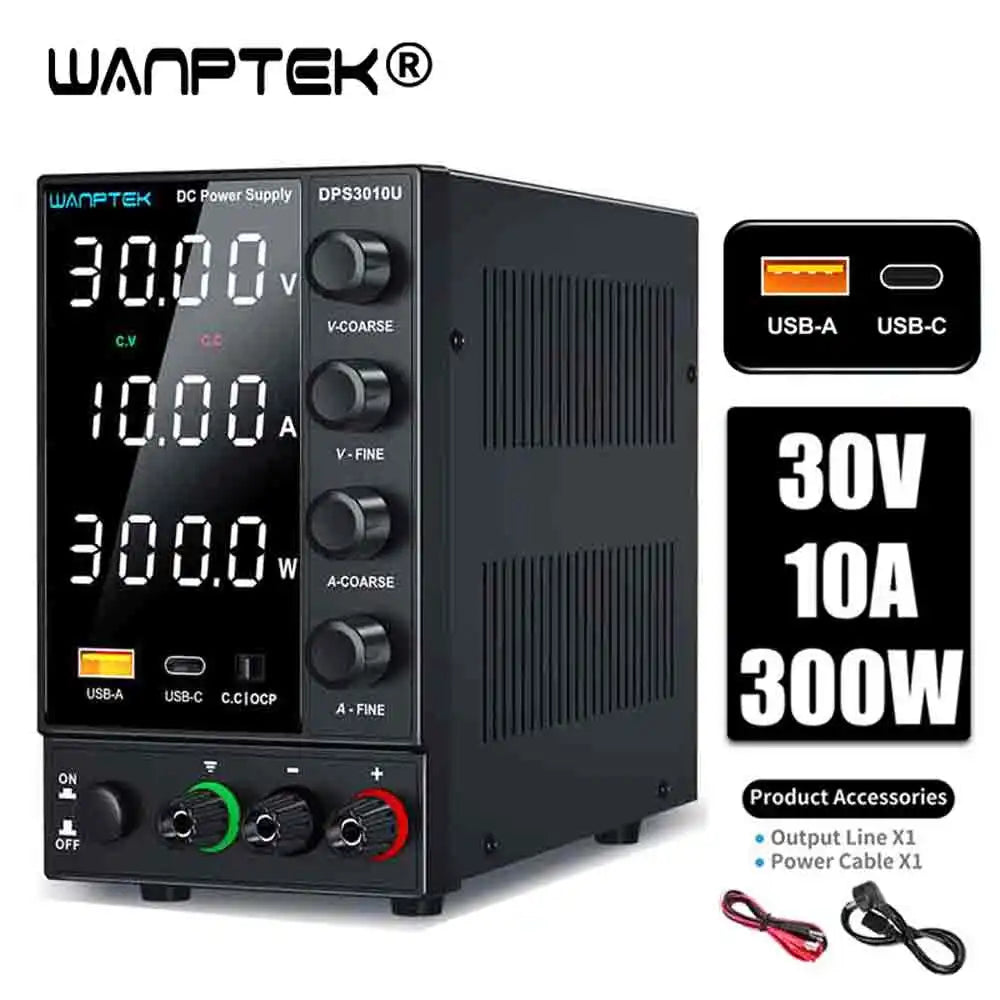

1.wanptek Encoder adjustment DPS305U DC power supply with power display 30V 5A

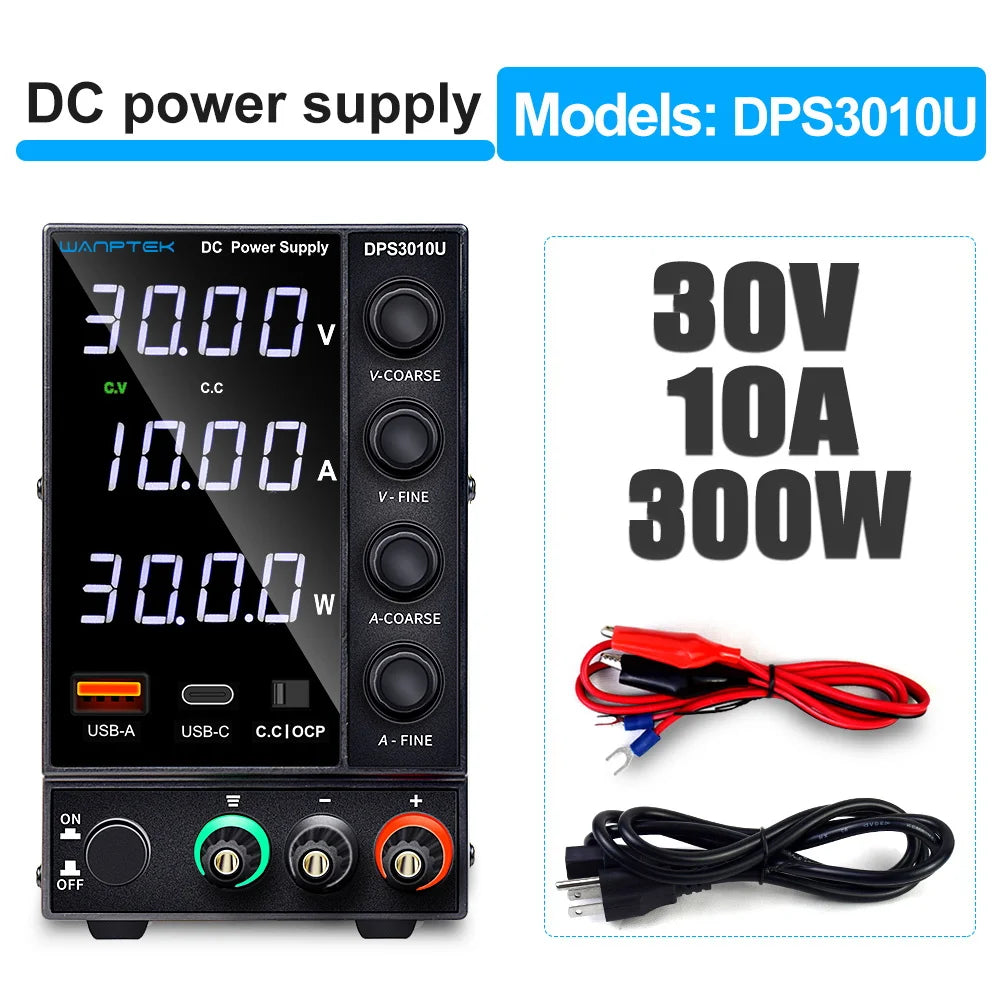

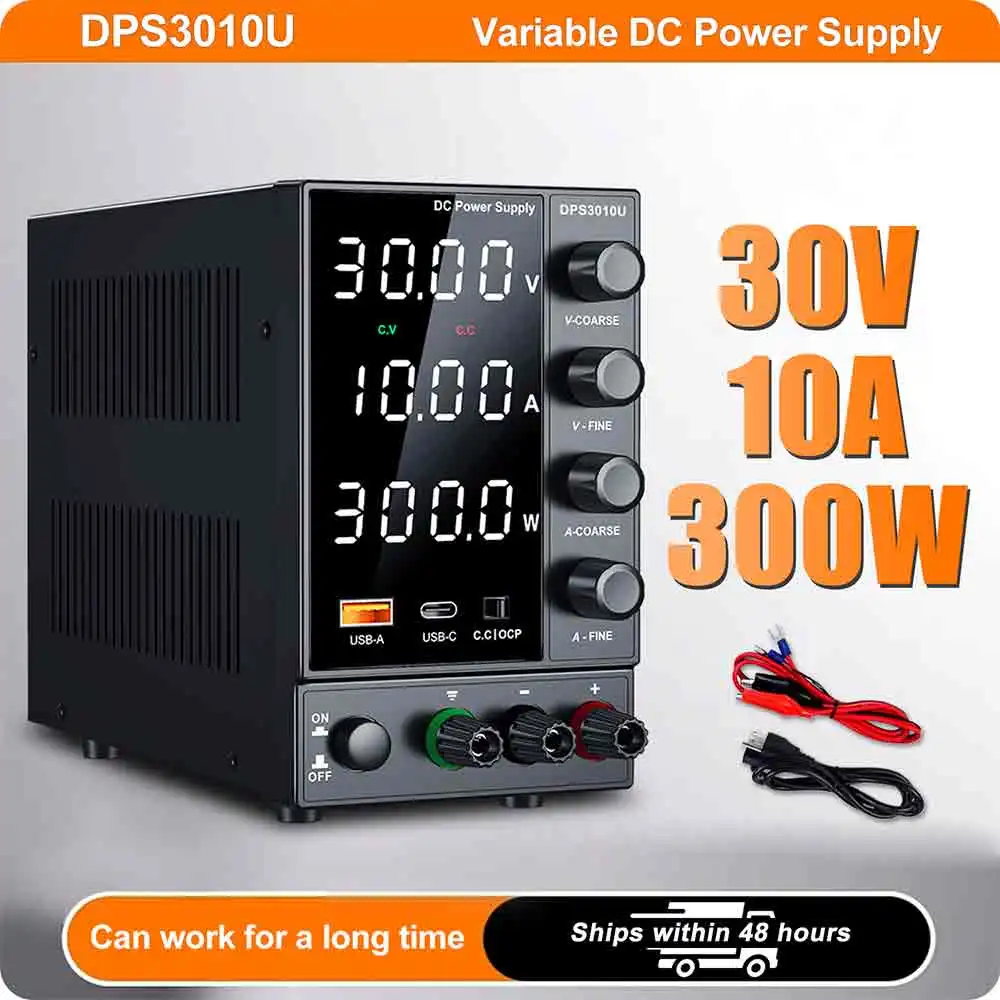

2.wanptek Encoder adjustment DPS3010U DC power supply with power display 30V 10A

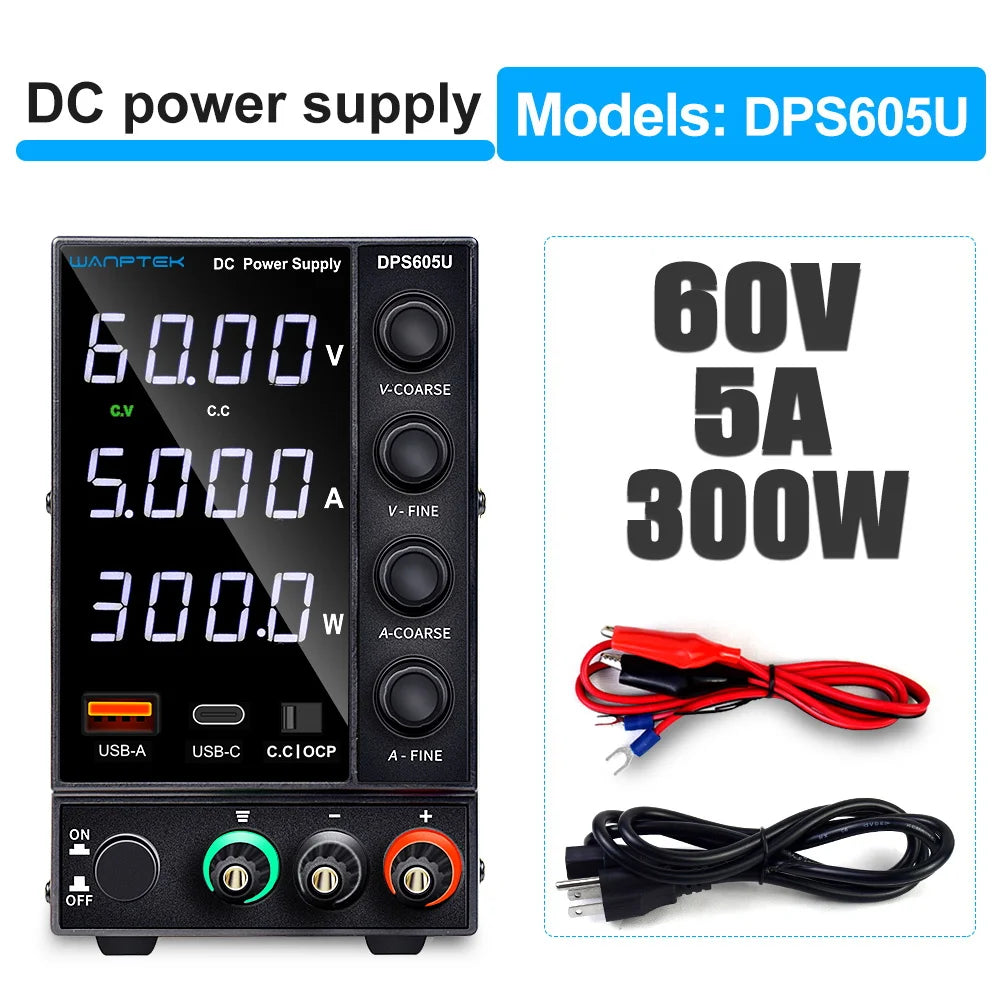

3.wanptek Encoder adjustment DPS605U DC power supply with power display 60V 5A

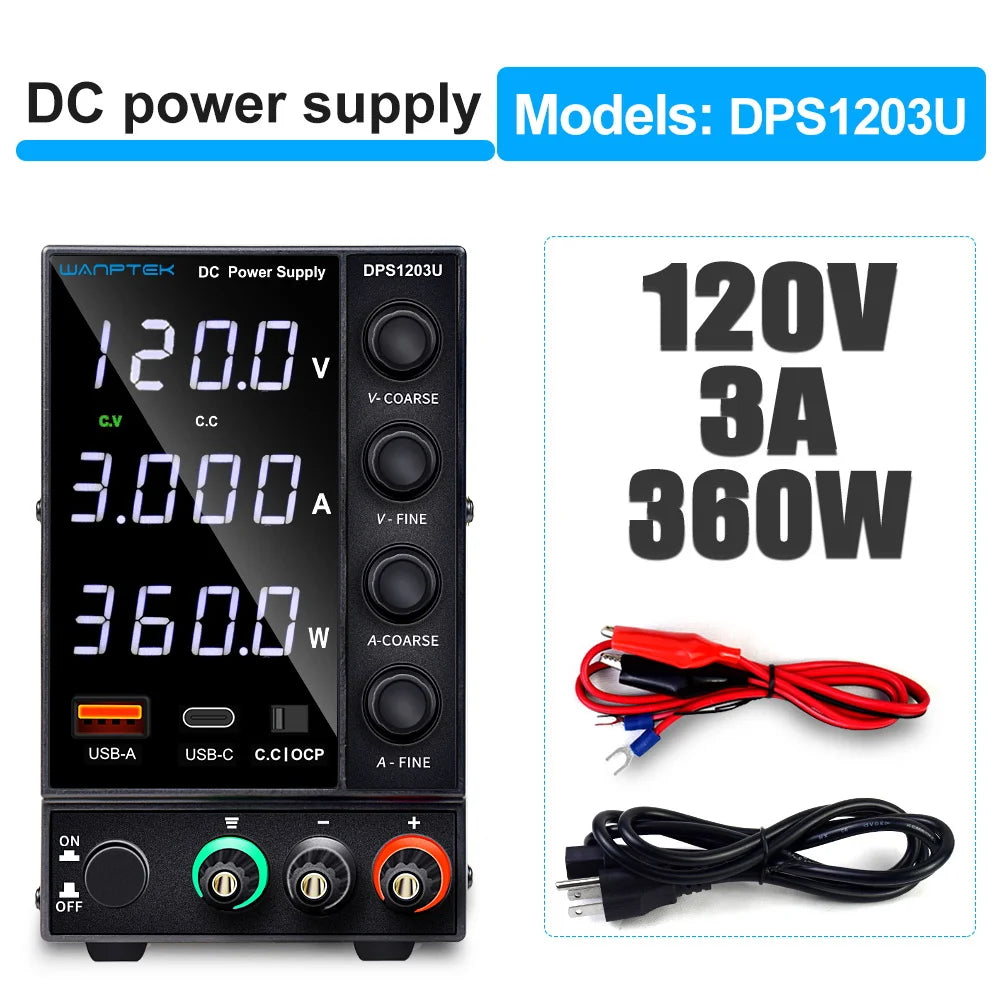

4.wanptek Encoder adjustment DPS1203U DC power supply with power display 120V 3A

DPS series products are a three window four position display high precision switching DC power supply, which can display voltage, current and power at the same time. The product is widely used in mobile phone maintenance, computer maintenance, school and production line. Its output voltage and current can be continuously adjustable between 0 and nominal value. The stability and ripple coefficient of the power supply are very good, with USB fast charging function and perfect short-circuit protection circuit. Its small size, beautiful design, convenient operation, can work for a long time with full load, deeply loved by the majority of users.


INTRODUCTION:
The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons,The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.
Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 30V/0 ~ 60V0 ~ 120V(Optional)
Output current:0 ~ 3A/0 ~ 5A/0 ~ 10A(Optional)
Output Power: 150W/300W(Optional)
Voltage display resolution:0.01V
Current display resolution:0.001A
Output Voltage ranges from 0 to rating voltage with continuous adjustment .
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.
Constant voltage CV
Voltage stability：0.1%±3mV
Load stability： 0.2%±3mV
Ripple voltage：≤0.5% Vp-p
0 to rated voltage continuously adjustable
Constant current CC
Current stability：0.1%±3mA
Load stability： 0.2%±3mA
Ripple current：≤0.5% Vp-p
Recovery time：≤500μS
Temperature coefficient：≤100ppm/℃
0 to rated current continuously adjustable
Display
0.56 inch white light four digit digital tube display
Display accuracy：0.5%±digits
Display resolution： voltage  0.01V， current  0.001A
Material: Aluminium alloy

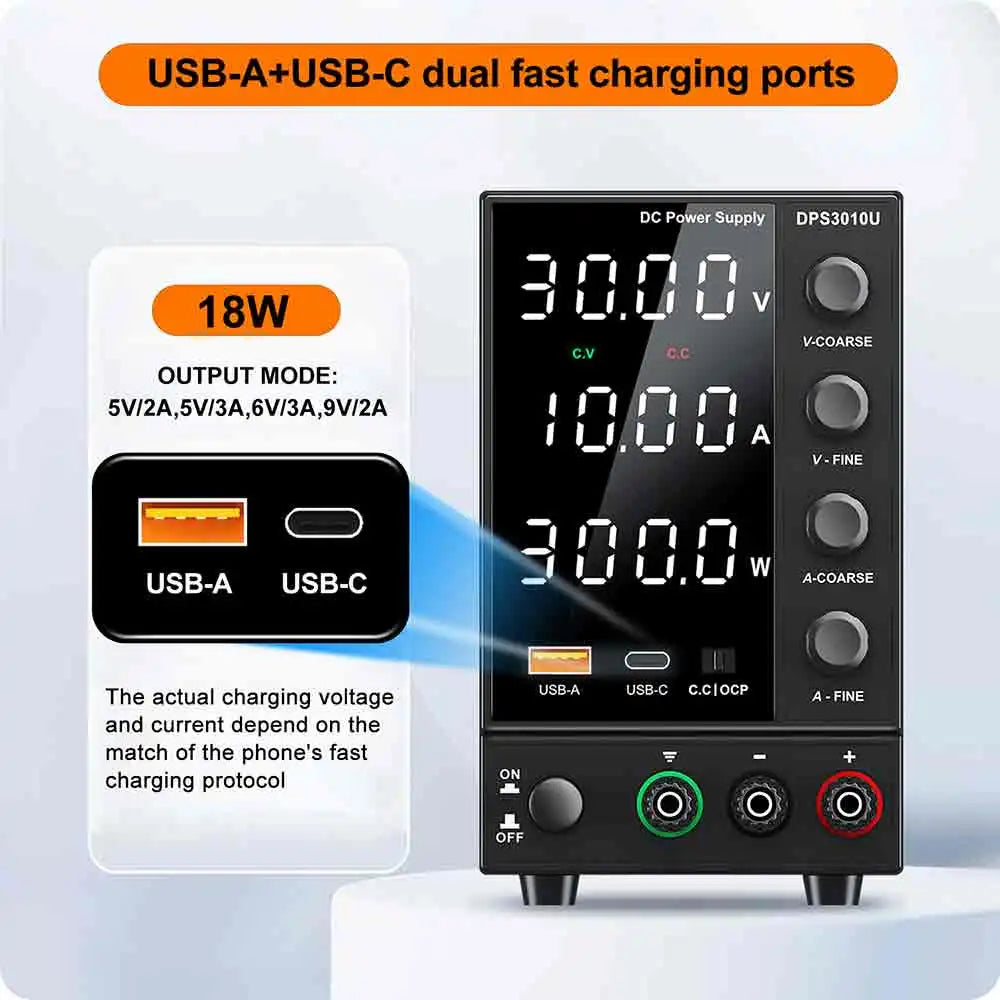

Auxiliary functions: USB fast charging, supporting various fast charging protocols
Protection mode: Current limiting protection / short circuit alarm stop output, self recovery

1. Production line test.

2. Mobile phone repair,computer repair,monitor repair,electrical appliance maintenance,Car DVD, car audio.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.

5. Laboratory, scientific research teaching,school,factory,scientific research production lines,maintenance power supply.

6. All other occasions requiring DC power supply.


1.USB fast charging function,supporting a variety of fast charging protocols.

2.Short circuit protection function, short circuit stop output.

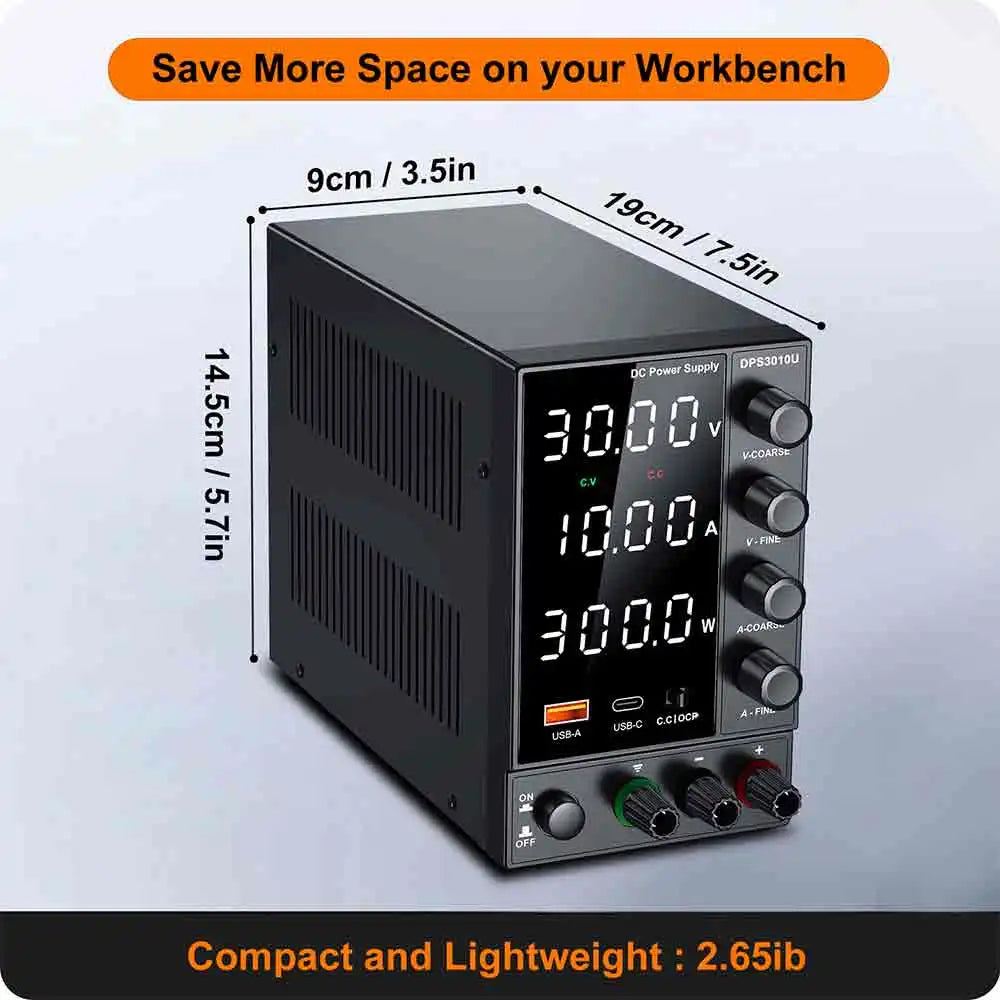

3.Small size, low ripple,light weight and high power density,Highly efficient.
4.Voltage stabilization, current limiting, simple operation.
5.Constant pressure and constant current switch automatically.
6.Three LED display of voltage, current and power, high precision.

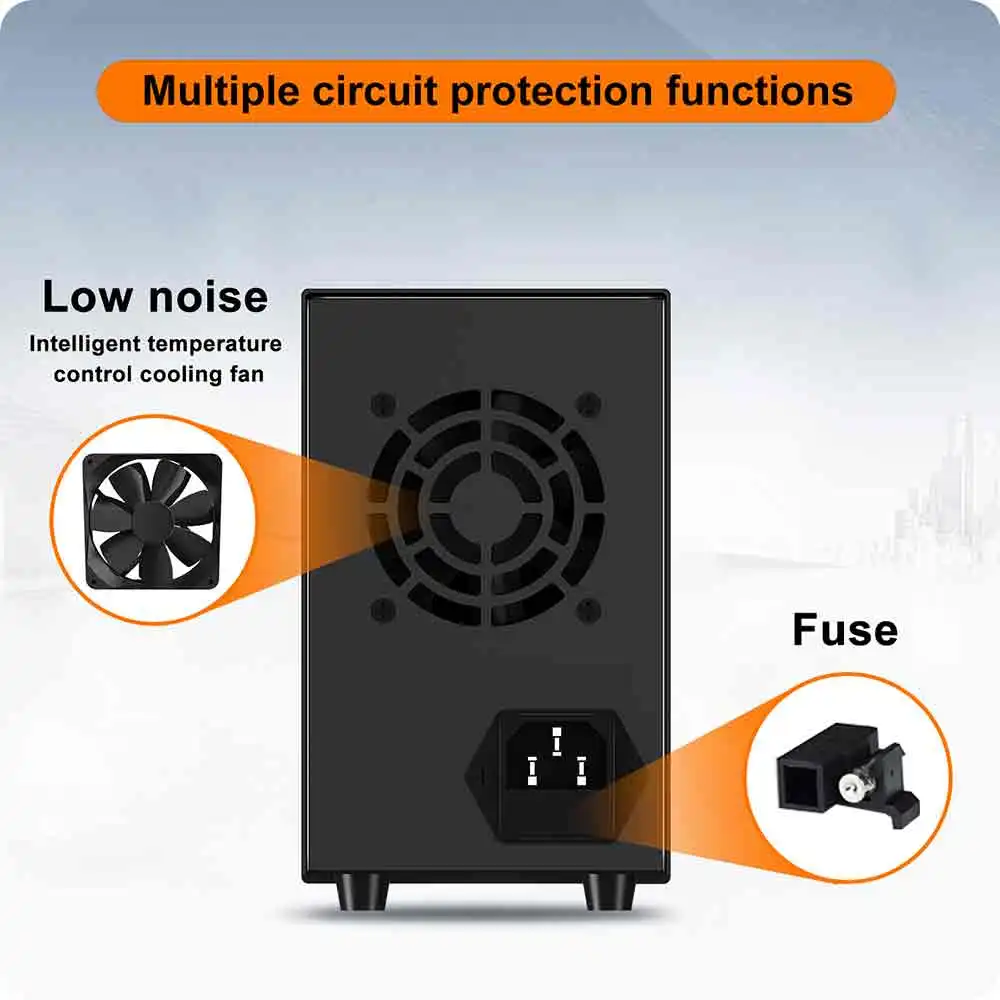

7.Temperature controlled fan heat dissipation, low noise, long life.

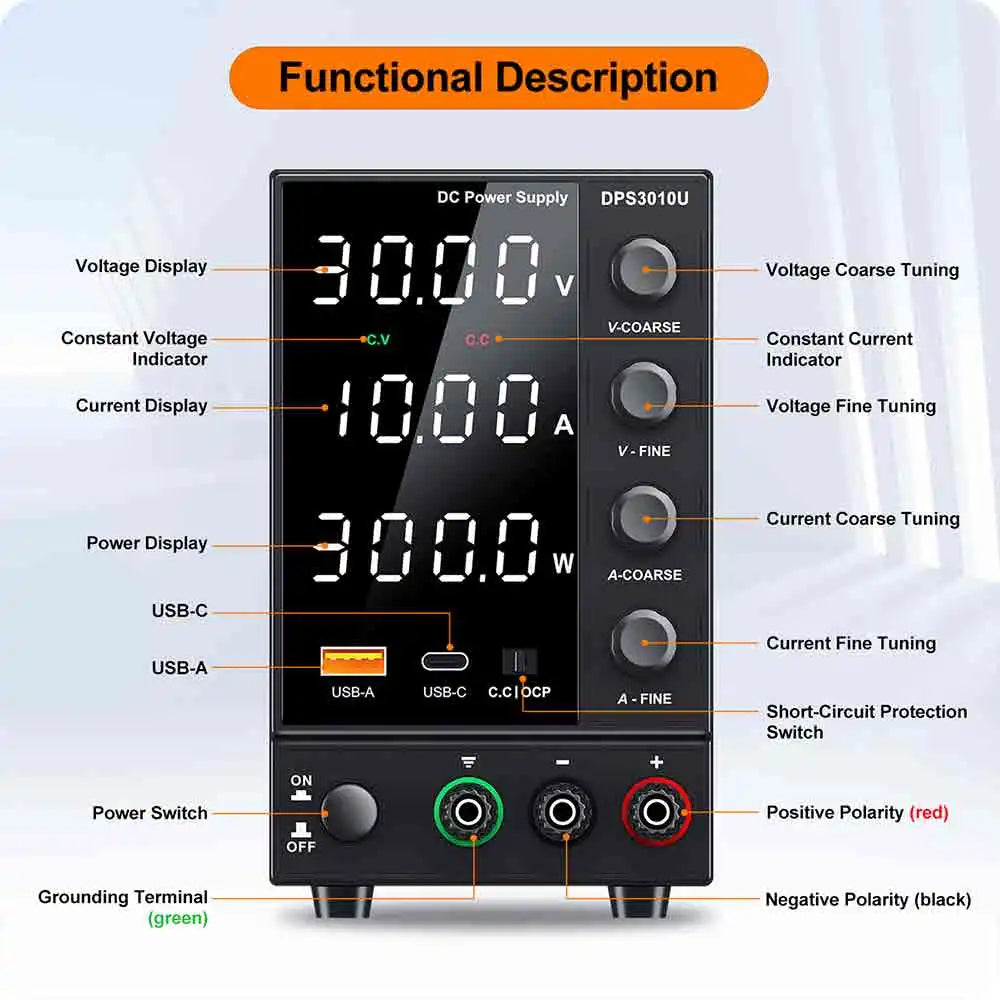

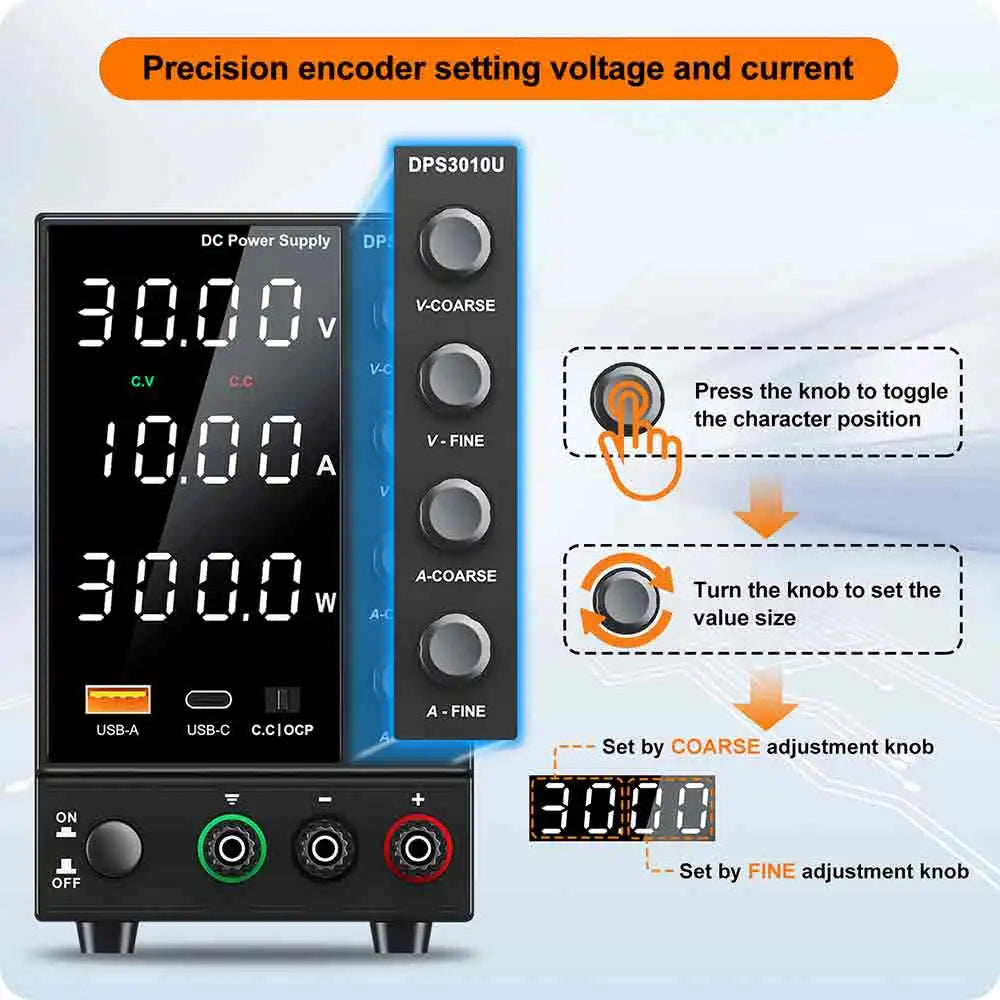

8.Four potentiometer more precise adjustment.
9.Dual voltage input and convenient choice.
10.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
11.Output current ranges from 0 to rating current with continuous adjustment
12.AC 110v and 220vcan work, rest assured to choose.

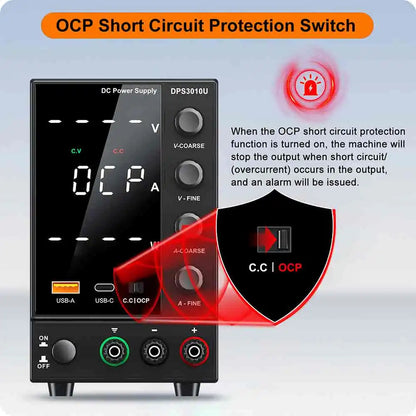

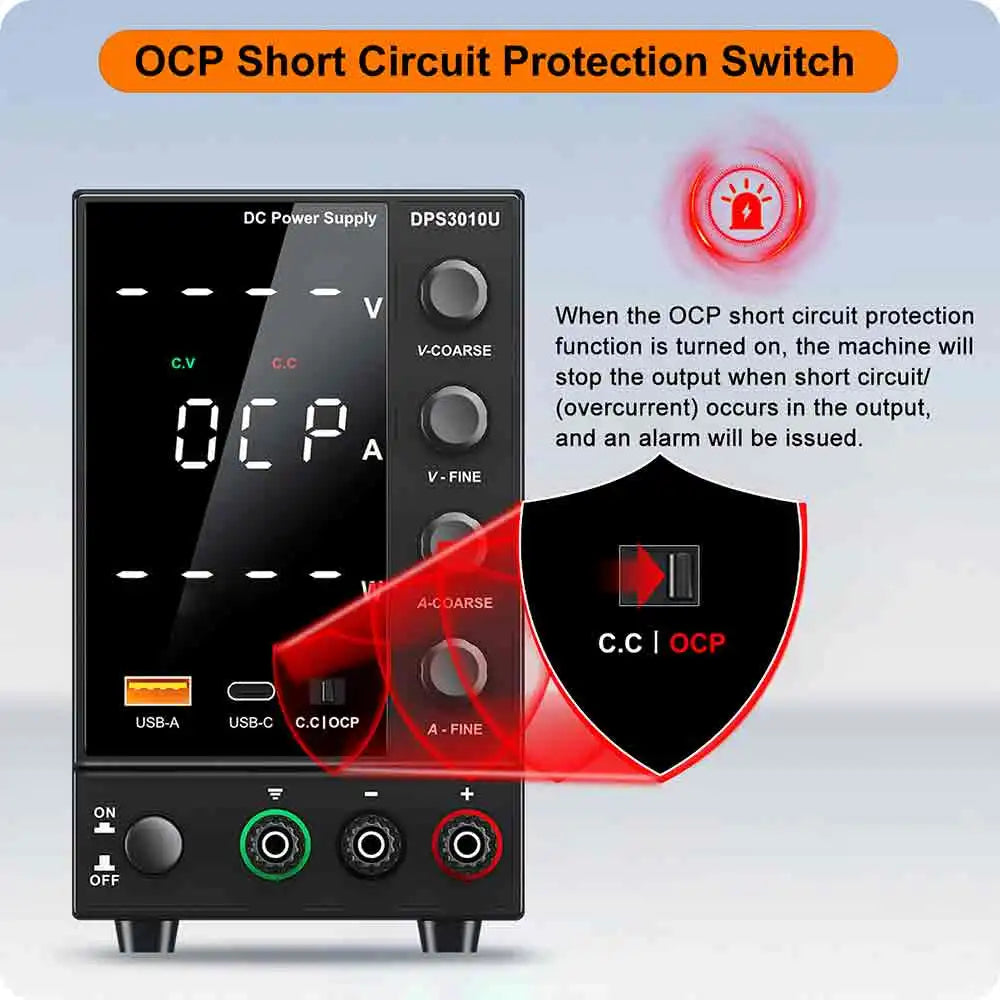

13.With over-voltage protection (OVP), over-current protection (OCP), over-temperature protection and upgraded short-circuit alarm function.

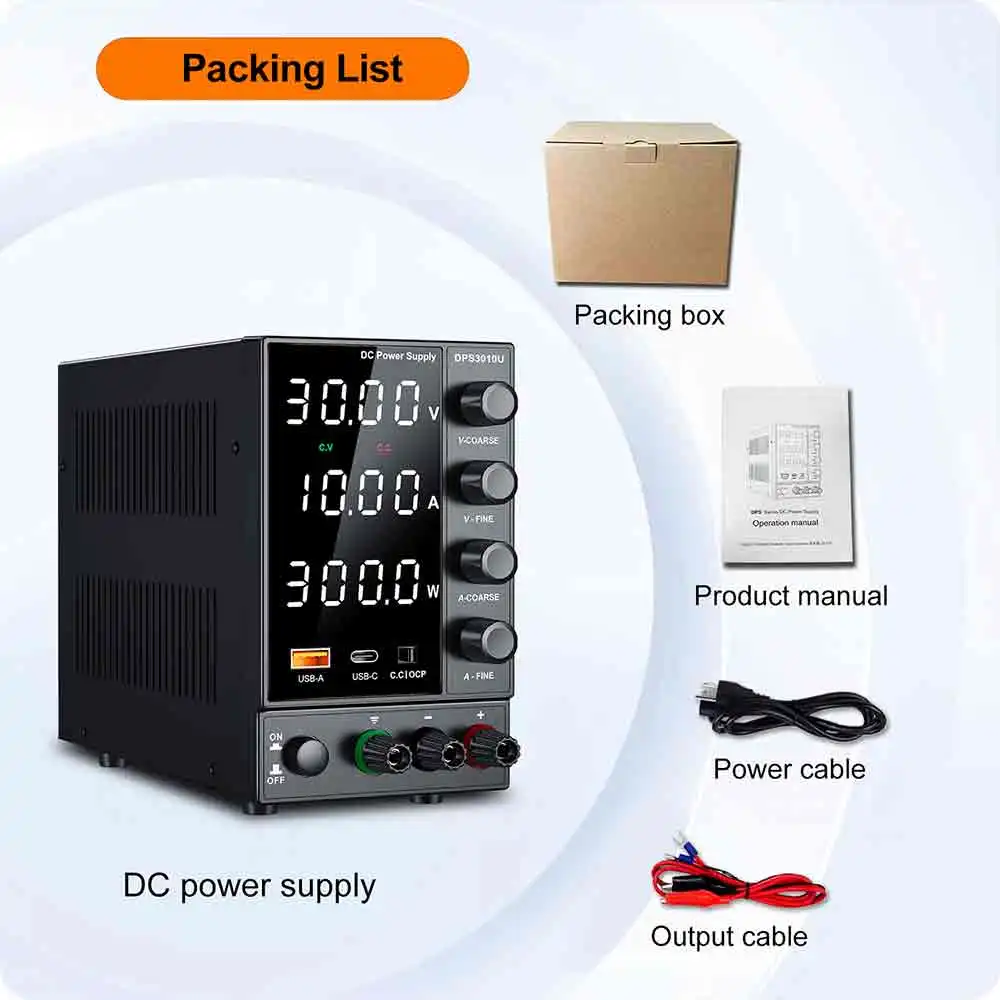

1x DC power supply

1x power cord (EU,US,UK,AU)

1xAlligator Clip Line

1x Instructions
