SPECIFICATIONS

Brand Name: wanptek

Certification: CE,FCC

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

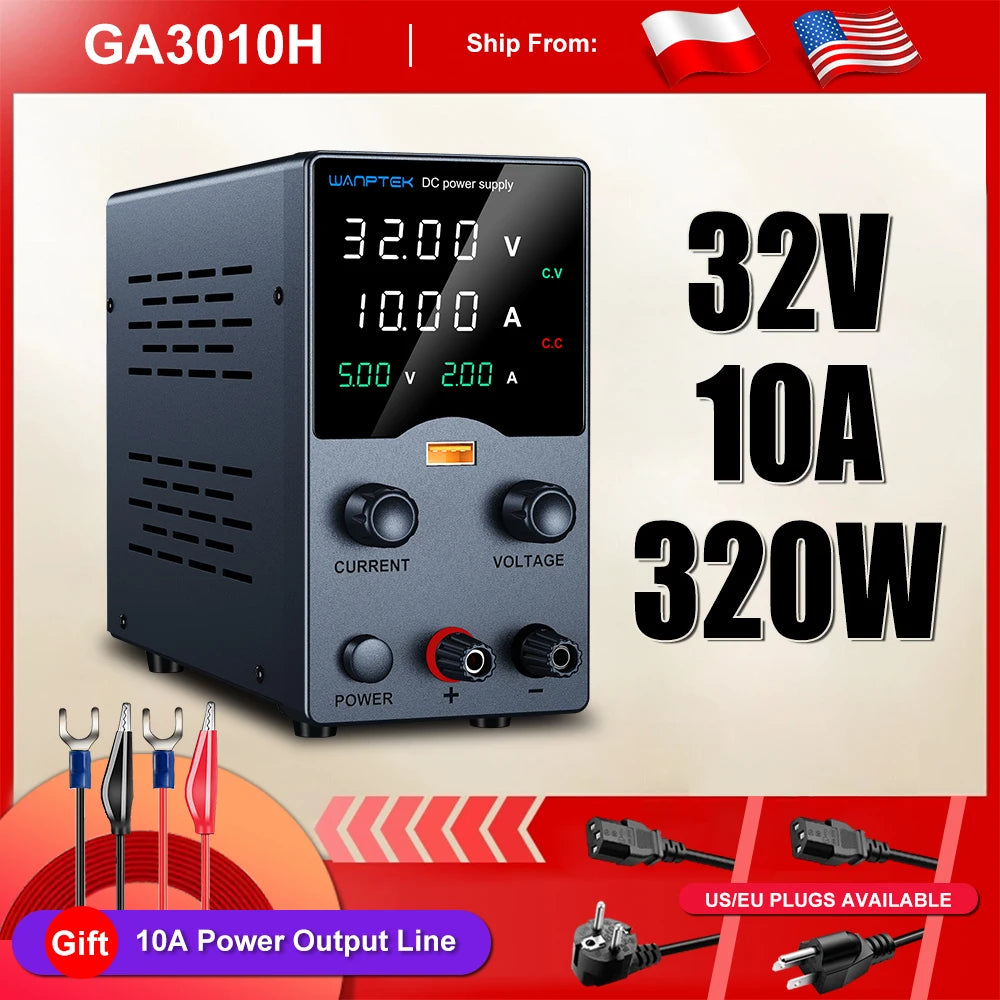

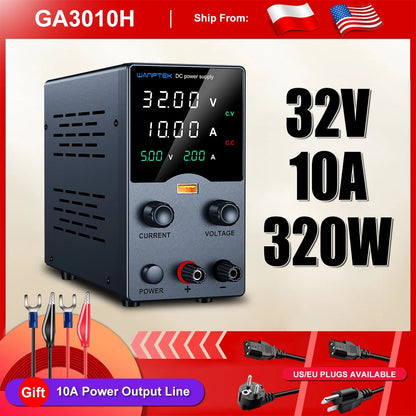

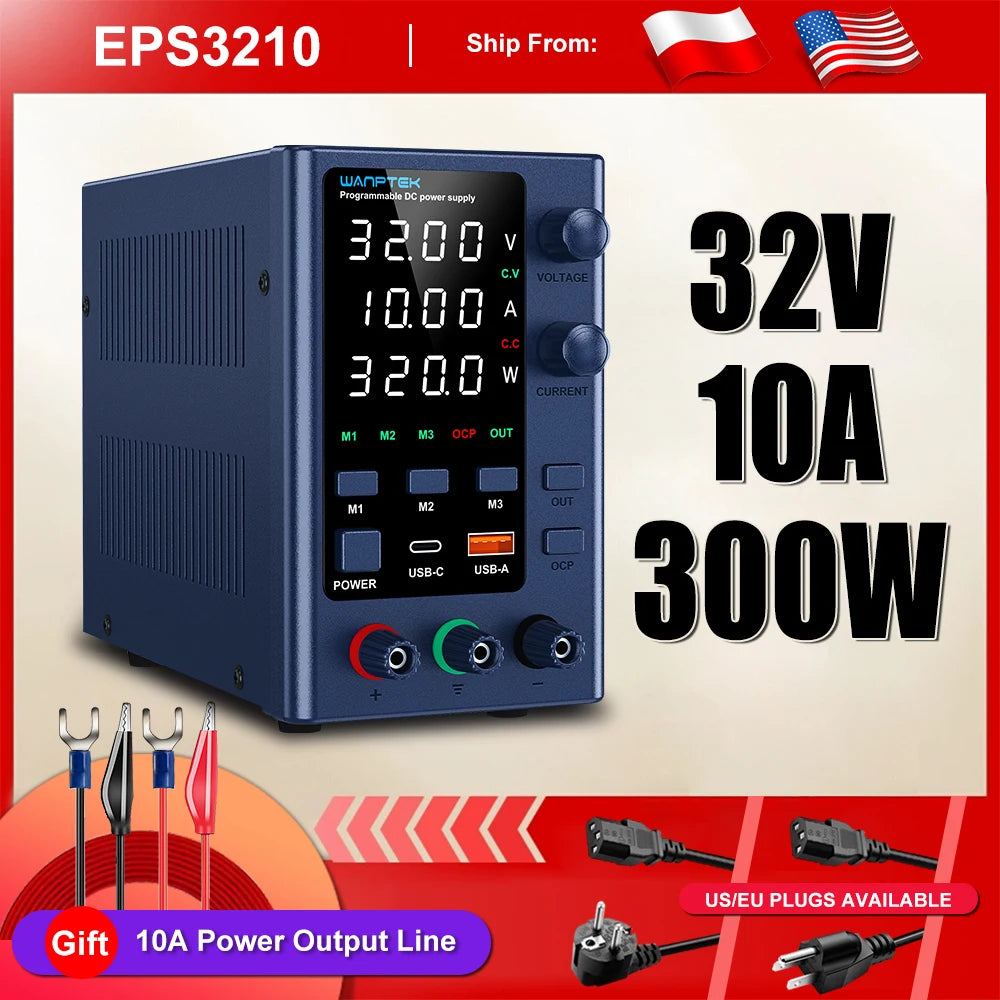

Model Number: GA3010H EPS3210

Origin: Mainland China

Output Current: 0-10A

Output Frequency: 50Hz/60Hz

Output Power: 150-500（include500）

Output Type: SINGLE

Rated Capacity: 40-1000VA（include40VA）

Type: Power Supply

Use: Other

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.

2.Constant pressure and constant current switch automatically.

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

10.Output current ranges from 0 to rating current with continuous adjustment .

Application areas

1. Production line testing.

2. Repair mobile phones, computers, and appliances.

3. Product aging and electroplating.

4. Battery charging.

5. Laboratory, scientific research, and teaching.

6. All other occasions that require a DC stabilized power supply.

More parameters

Protection mode OVP over-voltage protection, OCP over-current protection, over-temperature protection, short-circuit alarm stop output.

Working environment

Input voltage: AC 230V/115V±10%; 50Hz/60Hz

Operating temperature: 0℃～40℃;Relative humidity:<80%RH

Storage temperature:-10℃～70℃;Relative humidity:<70%RH

Voltage stabilisation CV

Voltage stability: 0.5%±3mV

Load stability: 0.5%±3mV

Ripple voltage: ≤0.5% Vp-p

0 to rated voltage continuously adjustable

Current stabilisation CC

Current stability: 0.5%±3mA

Load stability: 0.5%±3mA

Ripple current: ≤0.5% Vp-p

Recovery time: ≤500μS

Temperature coefficient: ≤100ppm/°C

0 to rated current continuously adjustable

Meter display

0.4-inch white four digital tube with three displays

Display accuracy: 0.5%±5 words

Display resolution: voltage 0.01V, current 0.001A

Product Characteristics

Product size: 190mm (L) X 90mm (W) X 145mm (H)

Package size: 265(L) x 135(W) x 195(H) mm

Bare weight: 1.15Kg

Weight with packing accessories: 1.5Kg

Frequently Asked Questions

Q: Is this power adapter suitable for repairing mobile phones and laptops?

A: Yes.

Q: Can this power supply charge a 25V car battery?

A: It can charge a 25V battery, as the power supply can reach a maximum voltage of 30V. (Caution! When charging, the power supply's set voltage must exceed the battery voltage. Otherwise, it may backfeed into the power supply and cause damage!)

Q: Can it be used for electroplating?

A: Yes, it can be used for electroplating.

Q: Does this power supply support 110V input voltage?

A: Our power supply supports dual voltage operation at 110V/220V.

Your package includes

1 * DC power adapter

1 * Output cable (bonus item)

1 * User manual

1 * Power cord (optional: AU/US/EU/UK, etc.)
